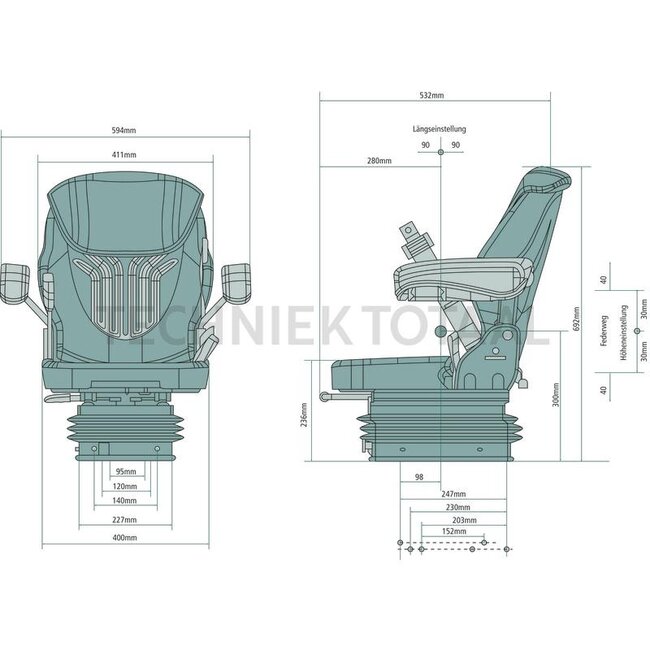

The Compacto Comfort S MSG93/511 is an air-suspended seat with a 12 V compressor, with PVC upholstery and a seat cushion width of 400 mm. Suspension travel is 80 mm, height adjustment 60 mm and longitudinal adjustment 180 mm. The weight adjustment range is 50 to 130 kg. The seat features fore/aft isolator, mechanical lumbar support, and backrest and tilt adjustment. Dimensions are 532 mm in length and 692 mm in height, with a track gauge of 225 mm. Seat contact switch, restraint system, seat heater, armrest and backrest extension are optional.
| Article number | 2401081368LHF |
|---|---|
| Weight | 100 kg |
| Suspension | Air suspension |
| Upholstery type | PVC |
| Seat contact switch | Optional |
| Track gauge | 225 mm |
| Seat width | 400 mm |
| Fore/aft isolator | Yes |
| Restraint system | Optional |
| On-board voltage | 12 V |
| Seat heater | Optional |
| Length | 532 mm |
| Height | 692 mm |
| Seat type | MSG93/511 |
| Technical data | • Comfort seat with air suspension and 12V compressor• Suspension travel 80 mm• Height adjustment 60 mm, continuous (air-assisted)• Weight adjustment, adjustment range 50 - 130 kg• Longitudinal adjustment 180 mm• Mechanical lumbar support• Backrest and tilt adjustment• Seat cushion width 400 mm• With fore/aft isolator |
| Version | The Compacto Comfort S combines GRAMMER's typical suspension, seating and operating comfort in a very small space. The seat can be adjusted with one hand.The air suspension is equipped with combined weight and height adjustment. An easy-to-read display band guarantees that the remaining suspension travel is within the green range regardless of the driver's weight. |
| Armrest | Optional |
| Lordosenstütze | Mechanical |
| Rückenverlängerung | Optional |
