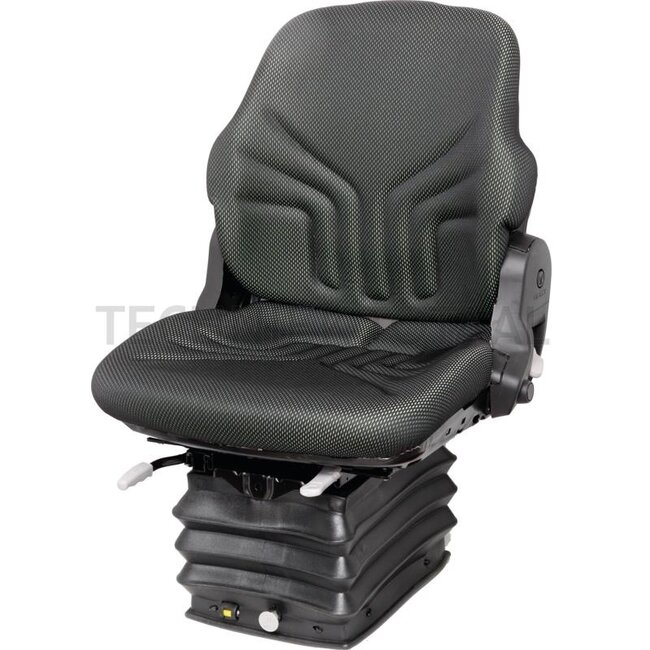

GRAMMER Compacto Comfort W
MSG93/721
Replaces: 1288538SHF
Technical data:
- Seat width (mm): 482
- Suspension: Air suspension
- Seat type: MSG93/721
- Seat contact switch: Optional
- Lordosenstütze: Mechanical
- Track gauge (mm): 227
- Seat heater: Optional
- Height (mm): 668 → 734
- Upholstery type: Fabric
- • Comfort seat with air suspension and 12V compressor • Suspension travel 80 mm • Height adjustment 60 mm, continuous (air-assisted) • Weight adjustment, adjustment range of 50 - 130 kg • Longitudinal adjustment 180 mm • Backrest tilt adjustment • Fore/aft isolator • Side horizontal suspension • Mechanical lumbar support • Seat cushion width: 480 mm
- On-board voltage (V): 12
- Restraint system: Optional
- Rückenverlängerung: Optional
- Side horizontal suspension: Yes
- Fore/aft isolator: Yes
- Armrest: Optional
- Version: The Compacto Comfort W combines GRAMMER's typical suspension, seating and operating comfort in a very small space. The seat can be adjusted with one hand. The air suspension is equipped with combined weight and height adjustment. An easy-to-read display band guarantees that the remaining suspension travel is within the green range regardless of the driver's weight.
- Length (mm): 568
