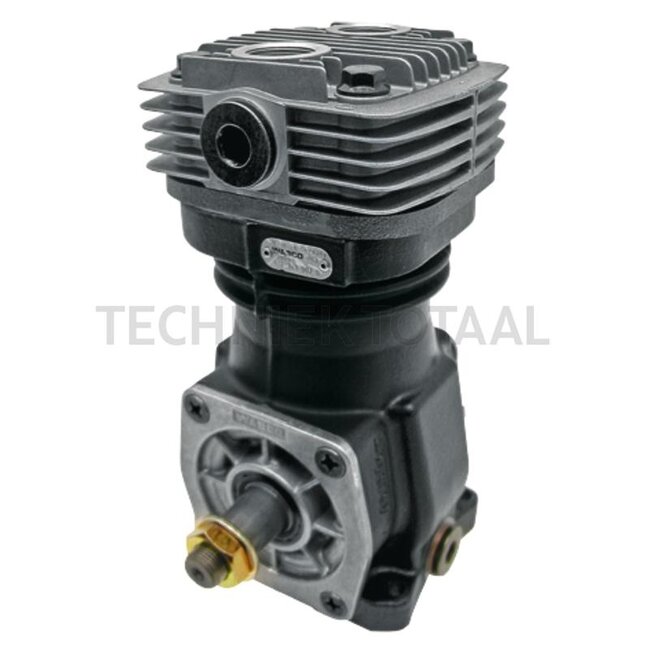

Wabco Compressor

Universal compressor with all holes

Replaces: LK 1560 Knorr, 04414768 Deutz 7700071622 Class, 301153101 Haldex, 4111410020, 411 141 002 0

Technical data:

• Cooling system: Air
• Max. speed (rpm): 3000
• Stroke (mm): 36
• Cylinder capacity (cm³): 159
• Coolant: Luft
• Type: 1 - cylinder
• Lubrication system: Engine oil • 8.1: M10 x 1 • 8.2: M22 x 1.5
• Inlet connection: 1: M26 x 1,5
• To fit: DAF, Deutz, Freightliner, Kenworth, Mack, Meritor, Peterbilt, Renault-Trucks, Volvo-Trucks
• Operating pressure max. (bar): 10
• Fixing: 4 holes Ø 8.5 mm Hole pattern: 75 x 110 mm
• Outlet connection: 2: M26 x 1,5
• Thread: Crankshaft M18 x 1.5
• Piston Ø (mm): 75

Suitable for:

Fendt: Favorit 611 (Typ 382), Favorit 612 (Typ 383), Favorit 614 (Typ 384), Favorit 615 (Typ 385), GT 345, GT 350, GT 360, GT 365, GT 370 (Typ 370), GT 380 (Typ 380)

John Deere: 1550, 1750, 1850, 1950, 2250, 2450, 2650, 2850, 3050, 3350, 3650, 6100, 6200, 6300, 6400, 6506, 6600, 6800, 6900, SE6100, SE6200, SE6300, SE6400, 7600, 7700, 7800, 7610, 7710, 7810
