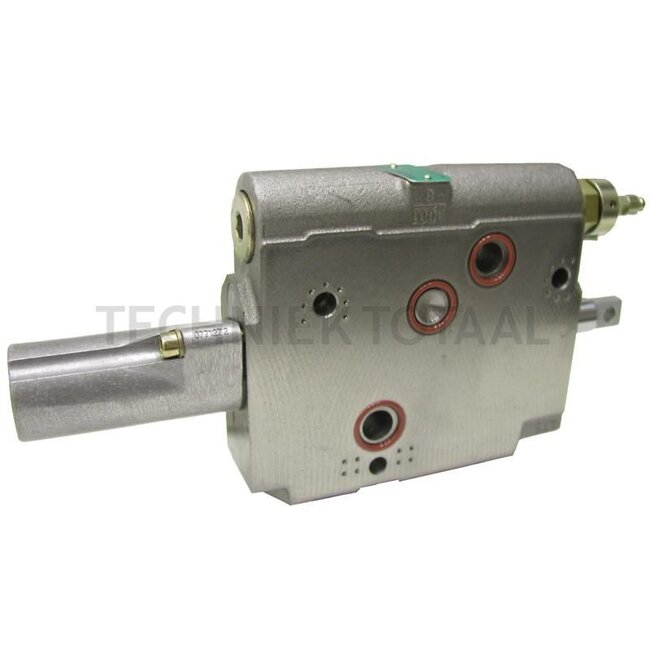

GRANIT Control unit - 85219073, 0521610086/485, R917006940, G816960021012, G816960021013, G816960021014, G816960021015, G816960021016 | Technical data: Max. operating pressure: 210 bar, Nominal flow: min. 90 l/min., Operating material: hydraulic oil, Tightening
€2.687,41
€2.265,06Incl. VAT
In stock
€1.871,95
Excl. VAT
Technical data: Max. operating pressure: 210 bar, Nominal flow: min. 90 l/min., Operating material: hydraulic oil, Tightening torque: 30 Nm, Connections: M22 x 1.5, Dimensions: 260 x 40 x 150 mm. Description: This auxiliary control unit is a 5/4-way valve
Read more.
50.000+ technical products
Worldwide shipping*
30-day return policy
Rating 9.0/10 (464 reviews)
Larger quantity required?
Product description
Control unit
Technical data: Max. operating pressure: 210 bar Nominal flow: min. 90 l/min. Operating material: hydraulic oil Tightening torque: 30 Nm Connections: M22 x 1.5 Dimensions: 260 x 40 x 150 mm

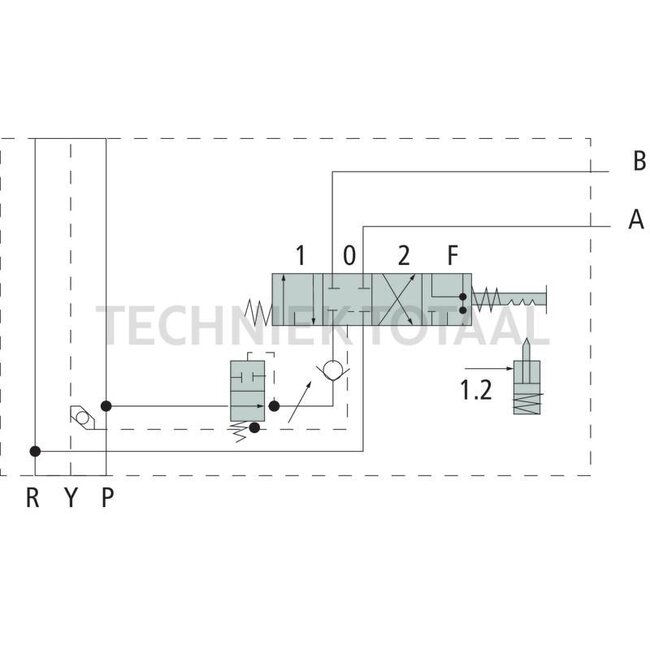

Description: This auxiliary control unit is a 5/4-way valve which is manually operated to control cylinders and hydraulic motors. This auxiliary control unit is a four-position control unit that can be used for double-acting and single-acting lifting cylinders. It has O-ring-sealed cylinder connections A and B. This means that no leakage occurs at high loads. The device has a detent position in the lifting position that is equipped with an automatic hydraulic limit switch and releases at 180 bar. When switching via the lowering position, the latched float position is engaged. This is not unlocked hydraulically (consumer connections A and B are connected together to the return line). The float position can be used on both double-acting and single-acting lifting cylinders as locked lowering position. The valve can be mounted on the left or right side using a freely positionable sealing plate. The sealing plate is included.
