GRANIT Control unit Optionally switchable between sa and da, without float position, with lever - 85219081, 0523600006, 0523600013, 0523600048, 0523600049, 0521602002, 0521602003, 0521602004, 0521602005, 0521600005, 0521602012, 0521602017, 0521602026, 0521602027
€395,82
€422,94Incl. VAT
GRANIT Control unit Optionally switchable between sa and da, without float position, with lever - 85219081, 0523600006, 0523600013, 0523600048, 0523600049, 0521602002, 0521602003, 0521602004, 0521602005, 0521600005, 0521602012, 0521602017, 0521602026, 0521602027
GRANIT Control unit Optionally switchable between sa and da, without float position, with lever - 85219081, 0523600006, 0523600013, 0523600048, 0523600049, 0521602002, 0521602003, 0521602004, 0521602005, 0521600005, 0521602012, 0521602017, 0521602026, 0521602027
€395,82
€422,94Incl. VAT
In stock
€349,54
Excl. VAT
Technical data: Max. operating pressure: 220 bar, Nominal flow rate: max. 40 l/min., Tightening torque: 30 Nm, Connections: M18 x 1.5, Dimensions: 170 x 40 x 75 mm. Connection thread: M18 x 1,5. Description: This auxiliary control unit is a 5/3-way valve
Read more.
40.000+ technical products
Worldwide shipping*
30-day return policy
Rating 9.0/10 (501 reviews)
Larger quantity required?
Product description

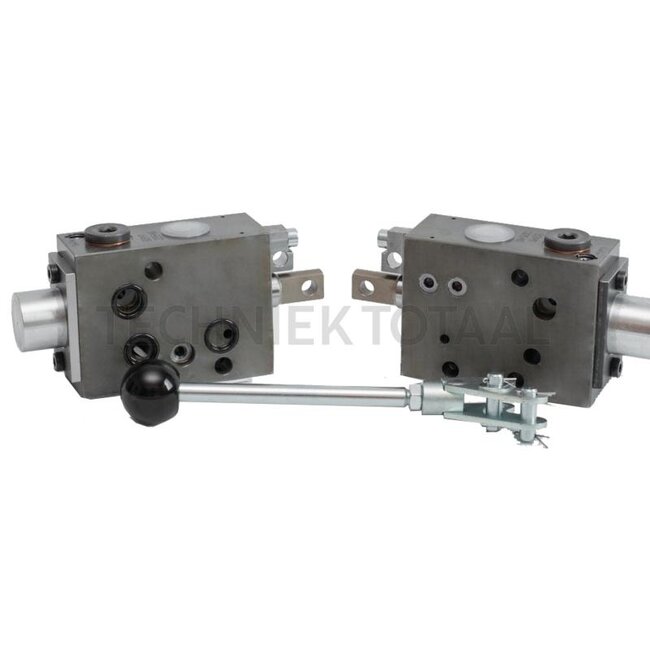

Control unit Optionally switchable between sa and da, without float position, with lever
Technical data: Max. operating pressure: 220 bar Nominal flow rate: max. 40 l/min. Tightening torque: 30 Nm Connections: M18 x 1.5 Dimensions: 170 x 40 x 75 mm
Connection thread: M18 x 1,5

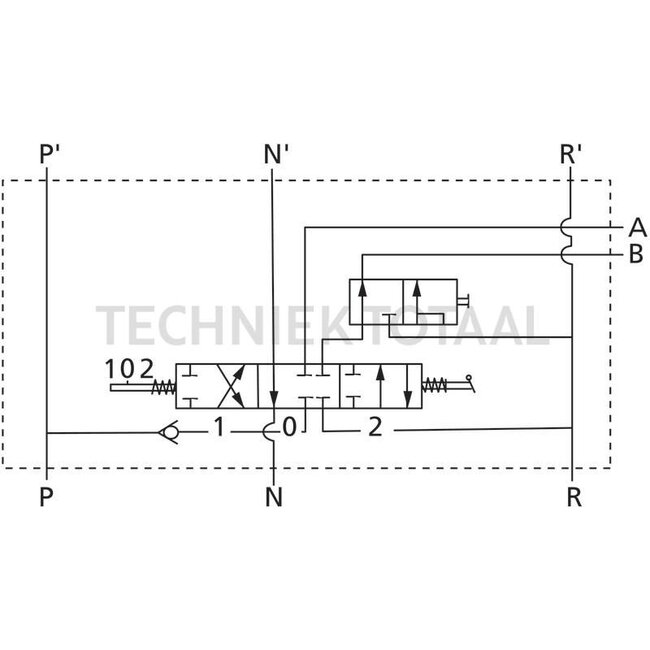

Description: This auxiliary control unit is a 5/3-way valve that is manually operated to control cylinders and hydraulic motors. This auxiliary control unit is a three-position device that can be used for double- and single-acting lifting cylinders. It has gate-sealed consumer connections A and B. This means that extremely low internal leakage is permitted with high loads. The auxiliary control unit can be switched from double- to single-acting. This is also possible during operation.
Fixing bolt tightening torque Nm: 30
Nominal flow rate (l/min.): 40
Passend voor:
Case IH: 19081, 0523600006, 0523600013, 0523600048, 0523600049, 0521602002, 0521602003, 0521602004, 0521602005, 0521600005, 0521602012, 0521602017, 0521602026, 0521602027, Serie A-Familie, 353, 383, 423, 433, 440, 453, 533, 540, 633, 640, 733, 740, 833, 840, 940 (1/90-12/92), Serie B-Familie, 523, 553, 554, 644, 654, 743, 743 XL, 744, 844, 844 S, 844 XL, Serie C-Familie, 955, 955 XL, 1055, 1055 XL, Serie D-Familie, 1255, 1255 XL, Serie D-Linie, 323, D 320, D 322, D 324, D 326, D 430, D 432, D 436, D 439, D 440
