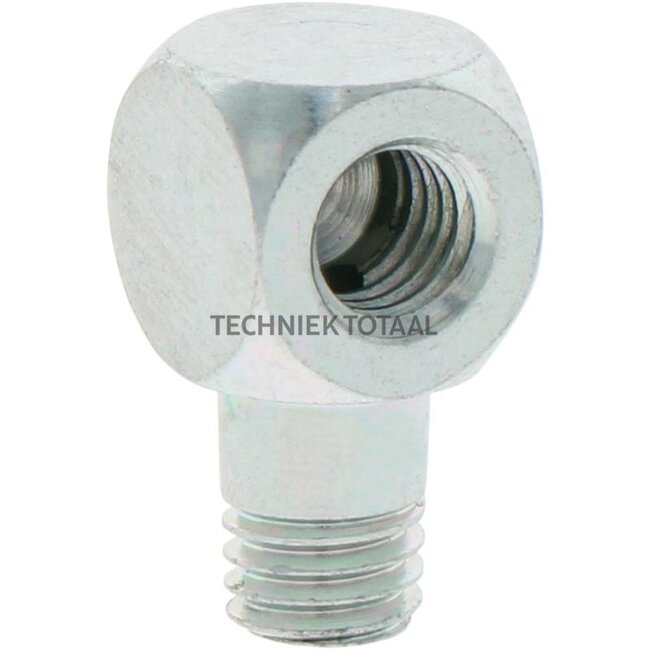

Corner threaded fitting 90° version 1, M8 x 1.25 tapered / M10 x 1

Technical data:

• S1 (mm): 12
• D (mm): 4
• L3 (mm): 10
• L1 (mm): 23
• Size I approx. (mm): 7
• Thread 1 (mm): M8x1.25k
• Material: Galvanised steel, yellow chromated
• Thread 2 (mm): M10x1

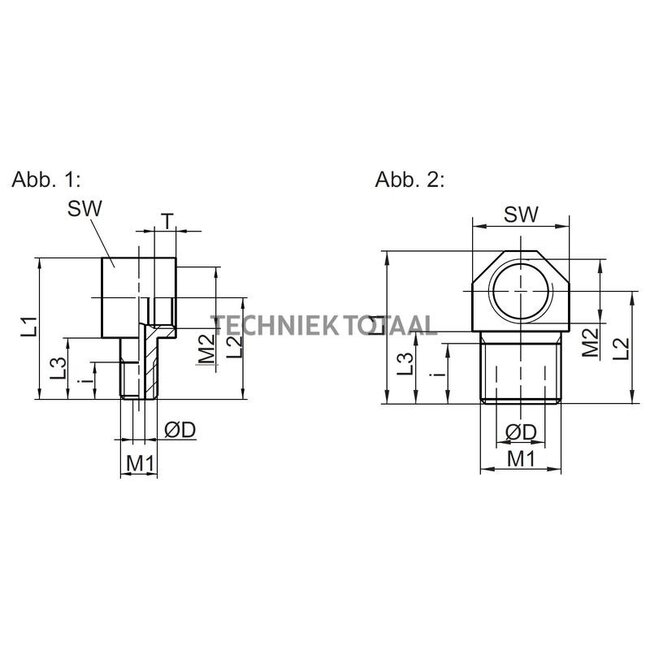

• Version: Fig. 1, corner threaded fitting 90° M8x1.25t - M10x1
• L2 (mm): 16.5
