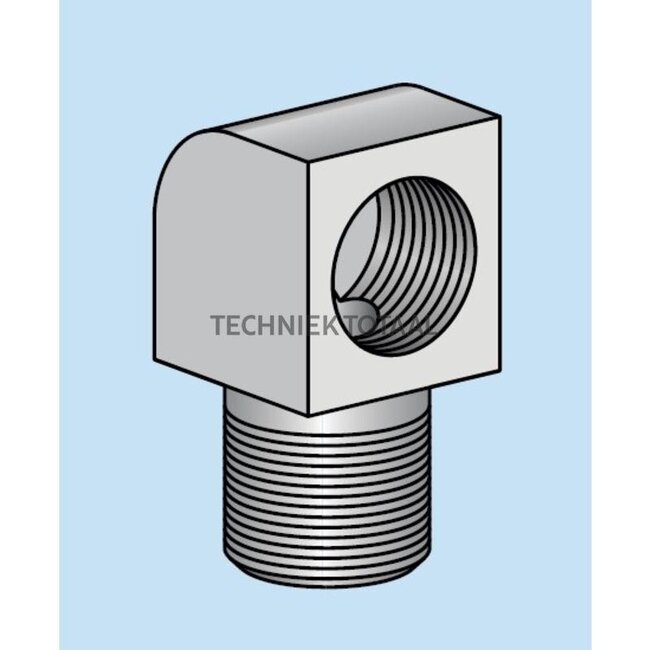

Corner threaded fitting 90° version 3, M6 tapered / M10 x 1

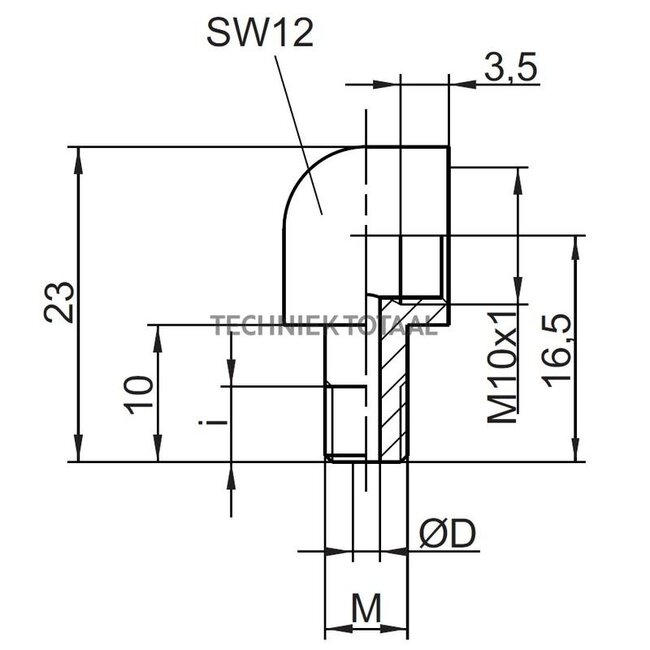

Technical data:

• L1 (mm): 23
• Version: Fig. 3, corner threaded fitting 90° M6t - M10x1
• Material: Galvanised steel, yellow chromated
• S1 (mm): 12
• L2 (mm): 16.5
• Size I approx. (mm): 6
• Thread 1 (mm): M6k
• D (mm): 2
• Thread 2 (mm): M10x1
