Product description

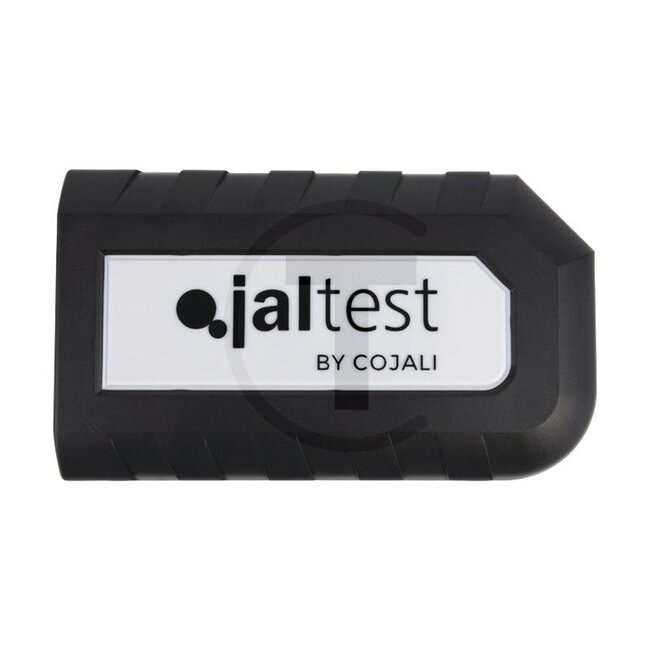

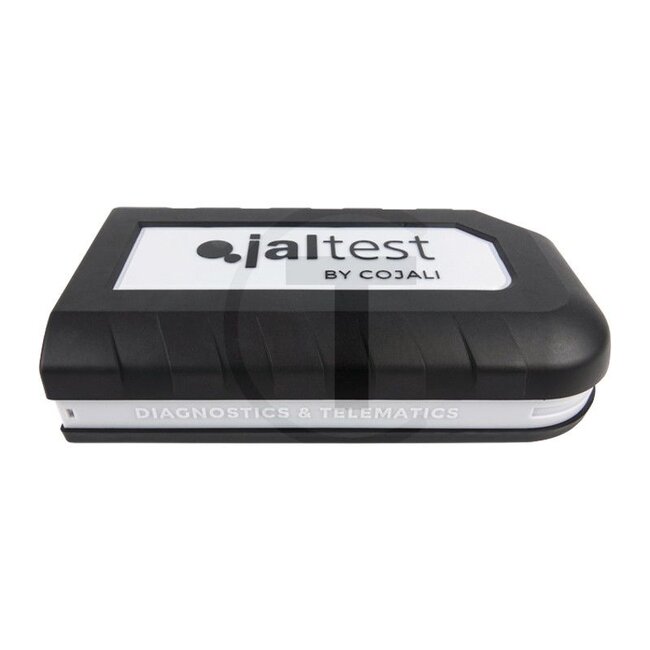

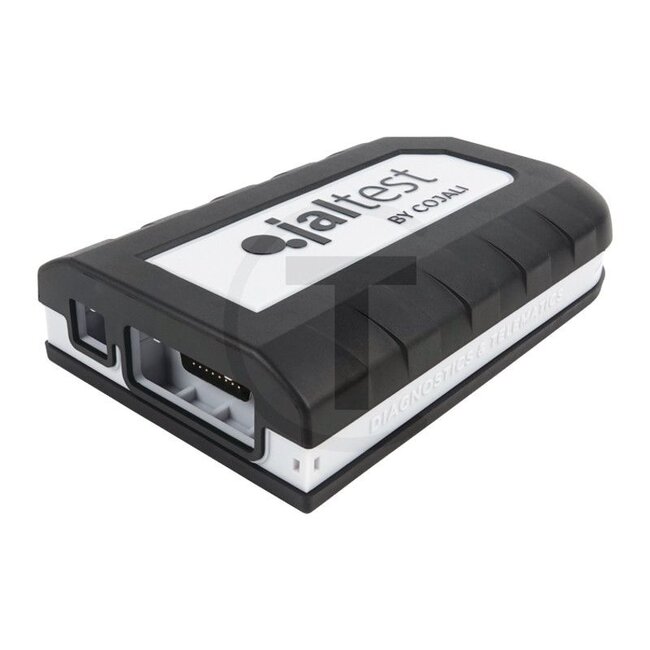

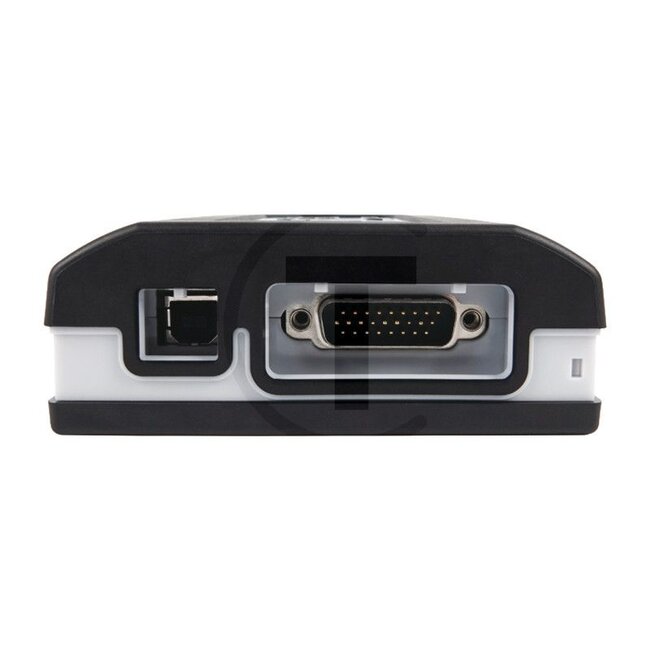

Diagnostic interface V9
Description: 680 x 480 x 180

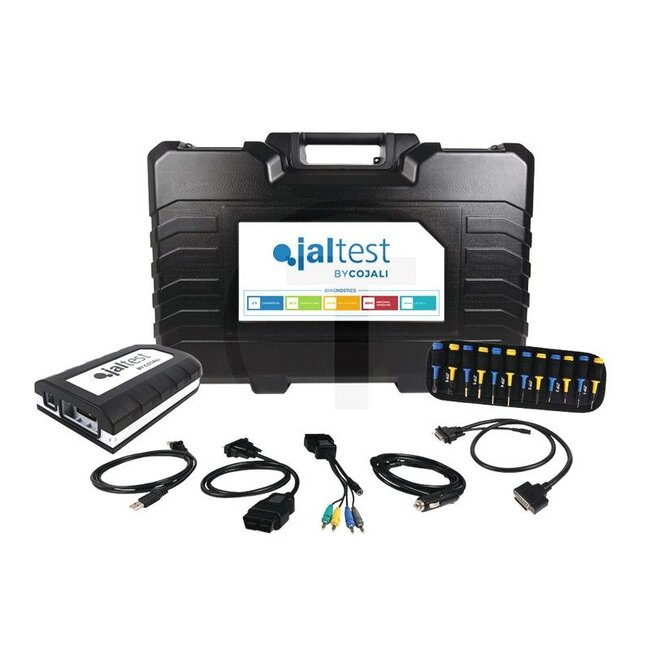

Contents: • Jaltest Link Interface (70001015) • Multi-pin kit (70002002) • OBD-II connection cable, 16-pin (JDC213.9) • USB-C connection cable (JDC107.9B) • Extension cable SUBD-26 with jack plug (JDC100) • Power supply cable (cigarette lighter) • Carry case (70003009)
Technical data: • Operating voltage 8 V DC - 28 V DC • Power consumption of the vehicle battery 7 W • Dimensions (length x width x height) 183.5 x 131.3 x 55.7 mm • Weight (without cable) 1.217 kg • Temperature range 0°C - 40°C • Enables connection via Bluetooth and USB cable • Integrated Bluetooth connection with transmission capacity up to 50 m Communication protocols: ISO 9141-2 SAE J1850 VPW SAE J1850 PWM SAE J1708 SAE J2534 SCI Haldex CAN ISO 11898, ISO 15765-4 (OBD) CAN Single Wire CAN Low Speed RP1210 PASS THRU
Reference no.: 70001003
Additional information: Activations, software packages and display options are also required to operate the diagnostic interface. Don’t hesitate to contact us for advice.
