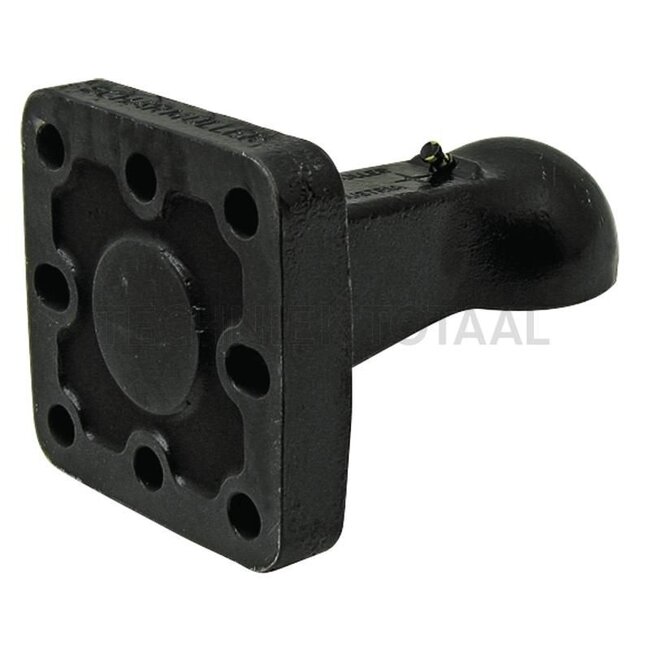

Walterscheid Drawbar eye - 770ZKK80-115, 8004441 | D-value: 102,4 kN | Flange: 7 holes | Load capacity: 4000 kg | Hole pattern: 115 x 130 mm | Hole: 6 x M22; 1 x M40 mm | No. of holes: 7 | Colour: Black | Lock: ball 80 | Thickness: 57,5 mm | Description: This product
€878,16
€740,14Incl. VAT
In stock
€611,69
Excl. VAT
D-value: 102,4 kN. Flange: 7 holes. Load capacity: 4000 kg. Hole pattern: 115 x 130 mm. Hole: 6 x M22; 1 x M40 mm. No. of holes: 7. Colour: Black. Lock: ball 80. Thickness: 57,5 mm. Description: This product is a spherical cap suitable for connection with
Read more.
50.000+ technical products
Worldwide shipping*
30-day return policy
Rating 4.7/5 (420 reviews)
Product description
Drawbar eye
D-value (kN): 102,4
Flange: 7 holes
Load capacity (kg): 4000
Hole pattern (mm): 115 x 130
Hole (mm): 6 x M22; 1 x M40
No. of holes: 7
Colour: Black
Lock: ball 80
Thickness (mm): 57,5

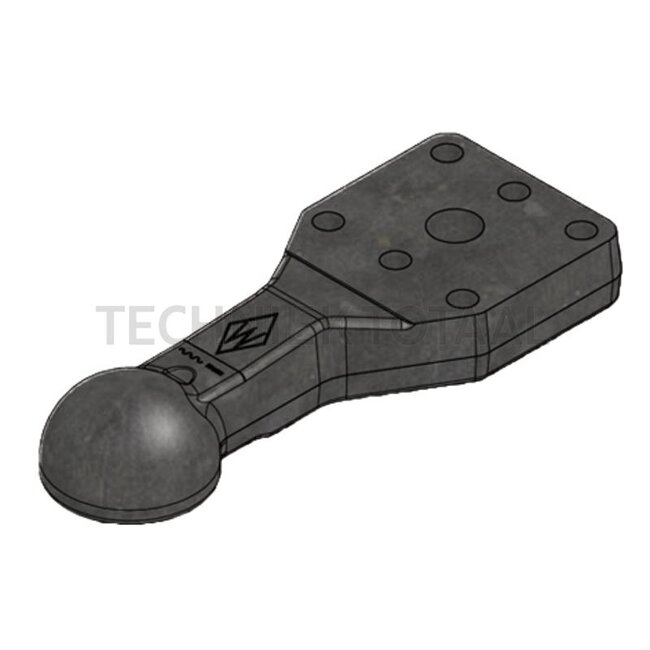

Description: This product is a spherical cap suitable for connection with a hitch ball D: 80 mm (ISO 24347). The areas of application include use on agricultural or forestry trailers. Product advantages: forged designed for the highest loads optimum clearance for angular movement of up to 36° grooves on the inside ensure optimum distribution of lubricating grease
Length of overhang (mm): 314,5
Assembly notes: Spherical cap according to ISO 24347, straight to be screwed underneath
