Walterscheid Drawbar eye - 770ZKK80/110, 8003309 | D-value: 89,3 / 98,5 kN | Flange: 8 holes | Load capacity: 3000 / 1000 kg | Hole pattern: 110 x 100 mm | Hole: M17 mm | No. of holes: 8 | Colour: black | Lock: ball 80 | Description: This product is a spherical cap su
€625,57
€527,26Incl. VAT
Walterscheid Drawbar eye - 770ZKK80/110, 8003309 | D-value: 89,3 / 98,5 kN | Flange: 8 holes | Load capacity: 3000 / 1000 kg | Hole pattern: 110 x 100 mm | Hole: M17 mm | No. of holes: 8 | Colour: black | Lock: ball 80 | Description: This product is a spherical cap su
Walterscheid Drawbar eye - 770ZKK80/110, 8003309 | D-value: 89,3 / 98,5 kN | Flange: 8 holes | Load capacity: 3000 / 1000 kg | Hole pattern: 110 x 100 mm | Hole: M17 mm | No. of holes: 8 | Colour: black | Lock: ball 80 | Description: This product is a spherical cap su
€625,57
€527,26Incl. VAT
In stock
€435,75
Excl. VAT
D-value: 89,3 / 98,5 kN. Flange: 8 holes. Load capacity: 3000 / 1000 kg. Hole pattern: 110 x 100 mm. Hole: M17 mm. No. of holes: 8. Colour: black. Lock: ball 80. Description: This product is a spherical cap suitable for connection with a hitch ball D: 80
Read more.
50.000+ technical products
Worldwide shipping*
30-day return policy
Rating 9.0/10 (472 reviews)
Larger quantity required?
Product description

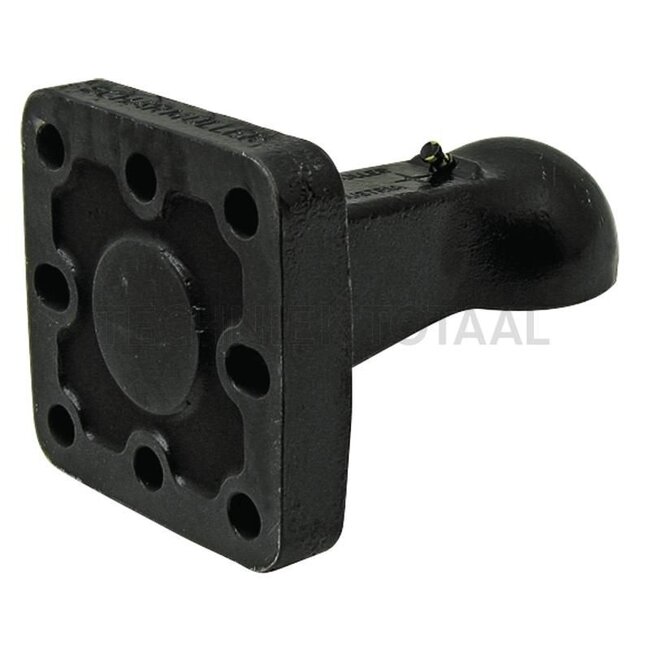

Drawbar eye
D-value (kN): 89,3 / 98,5
Flange: 8 holes
Load capacity (kg): 3000 / 1000

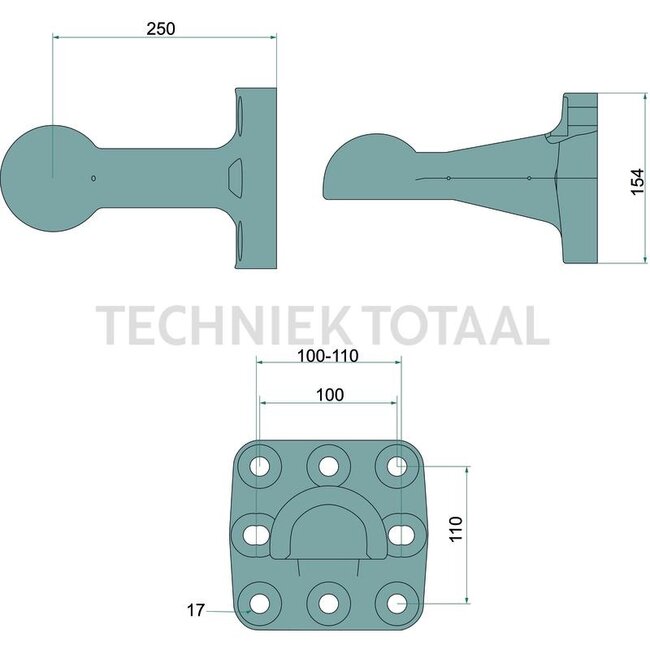

Hole pattern (mm): 110 x 100
Hole (mm): M17
No. of holes: 8
Colour: black
Lock: ball 80
Description: This product is a spherical cap suitable for connection with a hitch ball D: 80 mm (ISO 24347) or Class a80 according to UN Regulation R147. The areas of application include use on agricultural or forestry trailers. Product advantages: forged designed for the highest loads optimum clearance for angular movement of up to 36° grooves on the inside ensure optimum distribution of lubricating grease
Length of overhang (mm): 250
Assembly notes: Spherical cap according to ISO 24347
