Walterscheid Drawbar eye ball 80, 8-hole 145 x 145 mm, M21, 4500 / 1000 kg | 8003310
Walterscheid 9,4688 reviews
(0)
-21%
Walterscheid Drawbar eye ball 80, 8-hole 145 x 145 mm, M21, 4500 / 1000 kg | 8003310
-21%
Walterscheid Drawbar eye ball 80, 8-hole 145 x 145 mm, M21, 4500 / 1000 kg | 8003310
-21%
Walterscheid Drawbar eye ball 80, 8-hole 145 x 145 mm, M21, 4500 / 1000 kg | 8003310
Walterscheid Drawbar eye ball 80, 8-hole 145 x 145 mm, M21, 4500 / 1000 kg | 8003310
Walterscheid Drawbar eye ball 80, 8-hole 145 x 145 mm, M21, 4500 / 1000 kg | 8003310
Walterscheid Drawbar eye ball 80, 8-hole 145 x 145 mm, M21, 4500 / 1000 kg | 8003310

Walterscheid Drawbar eye ball 80, 8-hole 145 x 145 mm, M21, 4500 / 1000 kg | 8003310

€844,11
€667,36 Incl. 21% VAT
€551,54 Excl. VAT
In stock

D-value: 124,8 / 140,5 kN. Flange: 8 holes. Load capacity: 4500 / 1000 kg. Hole pattern: 145 x 145 mm. Hole: M21 mm. No. of holes: 8. Colour: black. Lock: ball 80. Description: This product is a spherical cap suitable for connection with a hitch ball D: 8 Read more.

  • Worldwide shipping*
  • Customer rating 9,3/10
  • 30-day return policy
  • 98,000+ technical products

Larger quantity required?



Any questions about this product?
Or do you need any help ordering? Feel free to get in touch with our support department at [email protected]. We're happy to help!

Product description

Drawbar eye

  • D-value (kN): 124,8 / 140,5
  • Flange: 8 holes
  • Load capacity (kg): 4500 / 1000
  • Hole pattern (mm): 145 x 145
  • Hole (mm): M21
  • No. of holes: 8
  • Colour: black
  • Lock: ball 80
  • Description: This product is a spherical cap suitable for connection with a hitch ball D: 80 mm (ISO 24347) or Class a80 according to UN Regulation R147. The areas of application include use on agricultural or forestry trailers.
    Product advantages:
    forged
    designed for the highest loads
    optimum clearance for angular movement of up to 36°
    grooves on the inside ensure optimum distribution of lubricating grease

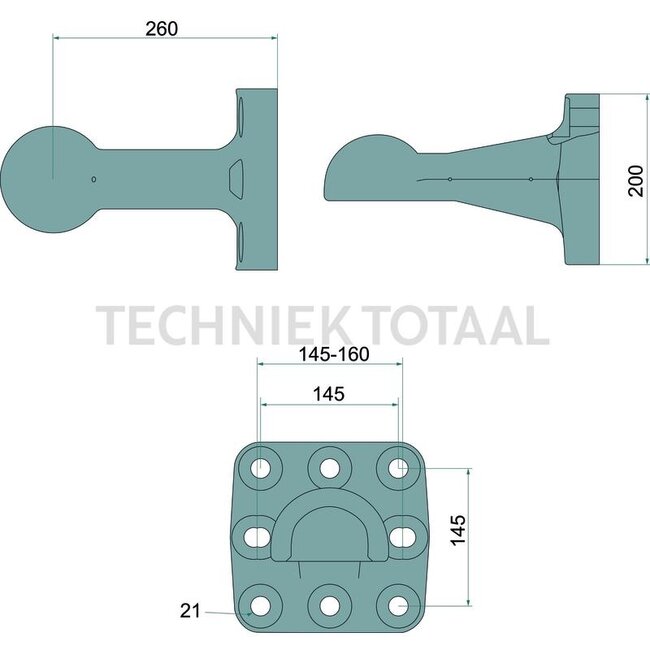

  • Length of overhang (mm): 260
  • Assembly notes: Spherical cap according to ISO 24347

  • Passend voor:

  • Strautmann: 8003310, Serie VS, VS 2005
  • Specifications Drawbar eye ball 80

    Article number770ZKK80/145
    Weight21,4 kg
