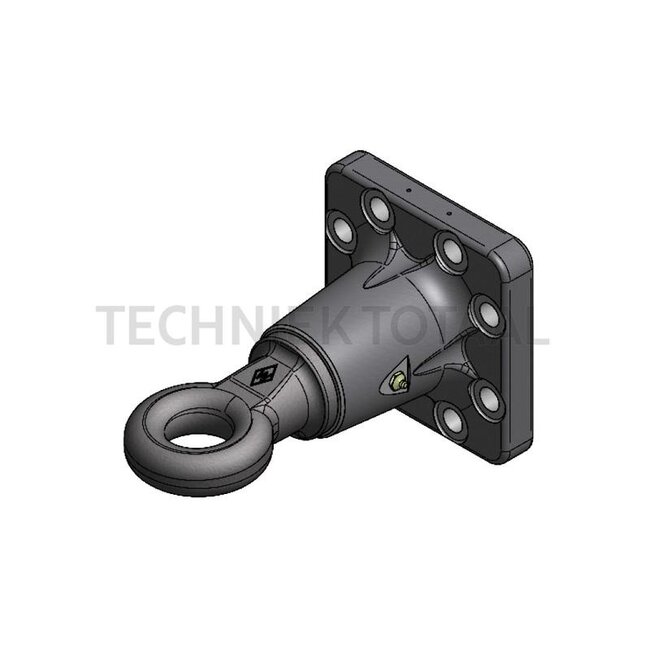

Walterscheid Drawbar eye Pick-Up Hitch Ø 50 mm, 160 x 160 mm, length 267 mm | 8005148
€927,15
€728,45 Incl. 21% VAT
€602,02 Excl. VAT
Delivery time on request
Version: Pick-up hitch. D-value: 102,4 / 107,4 kN. Hole pattern: 160 x 160 mm. Towing eye Ø: 50 mm. Load capacity: 3000 / 1500 kg. Colour: black. Lock: Ring, rotatable. A: 268 mm. No. of holes: 8. B: 160 mm. Description: The ring dimensions of the drawbar Read more.
Or do you need any help ordering? Feel free to get in touch with our support department at [email protected]. We're happy to help!
Product description
Drawbar eye
Version: Pick-up hitch
D-value (kN): 102,4 / 107,4
Hole pattern (mm): 160 x 160
Towing eye Ø: 50 mm
Load capacity (kg): 3000 / 1500
Colour: black
Lock: Ring, rotatable

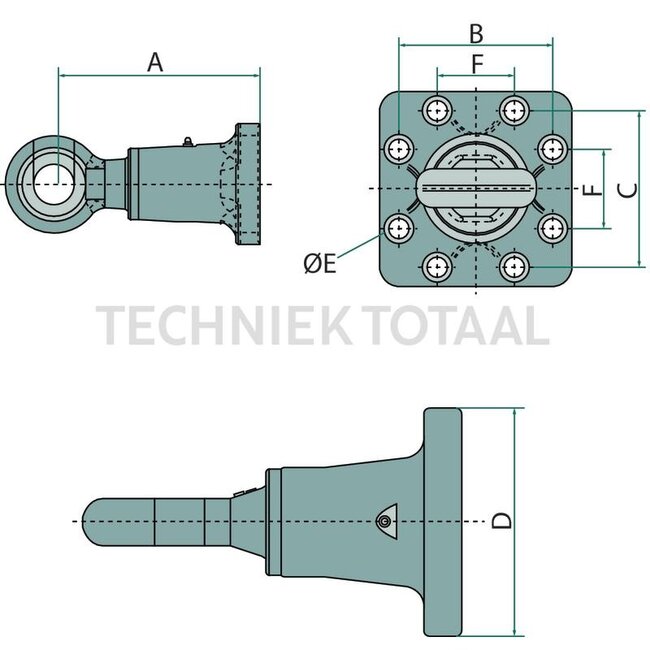

A (mm): 268
No. of holes: 8
B (mm): 160
Description: The ring dimensions of the drawbar eye comply with ISO 20019. The areas of application include use on agricultural or forestry trailers. Product advantages: Forged from high-strength material.
Hole (mm): M21
C (mm): 160
D (mm): 200
Flange: 8 holes
Length (mm): 267
Included in delivery: Includes 1x drawbar eye 770ZOD5168RD with type plate.

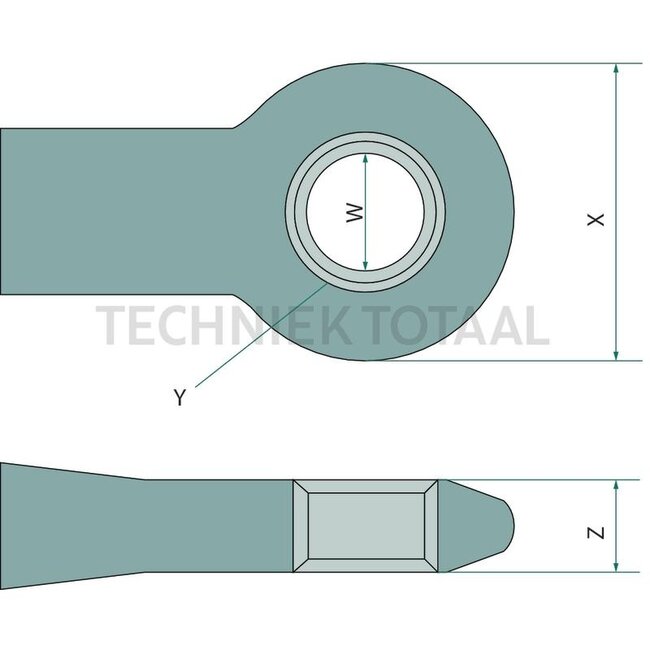

W (mm): 50
X (mm): 100 - 115
Y (mm): 32 - 34
F (mm): 80
Z (mm): 35 - 37
Assembly notes: Drawbar eyes in accordance with DIN 9678 (ISO 5692-1). The ring dimensions comply with ISO 20019.
