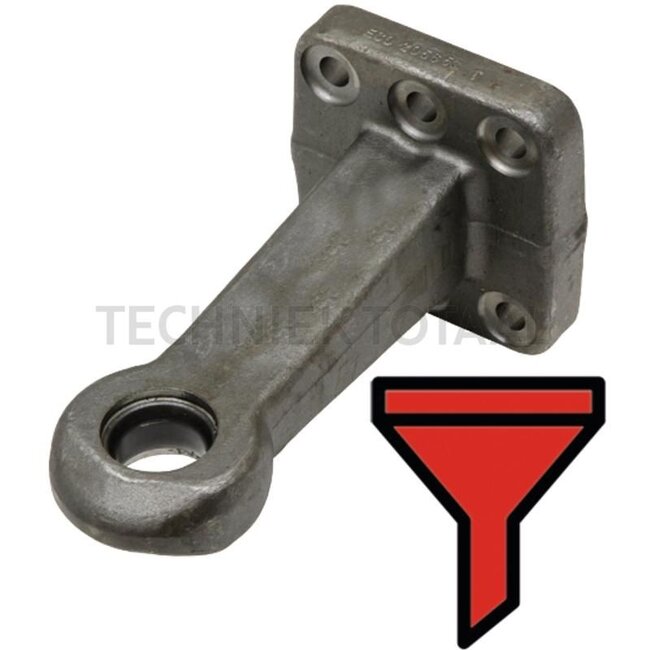

Walterscheid Drawbar eye - 770ZO74053-50D1, 8000537 | Version: Flange | D-value: 190 kN | Hole pattern: 110 x 100 mm | Towing eye Ø: 50 mm | Load capacity: 2500 kg | Colour: Black | Lock: Standard drawbar eye | A: 250 mm | No. of holes: 8 | B: 100 mm | Description: Th
€388,35
€381,75Incl. VAT
In stock
€315,50
Excl. VAT
Version: Flange. D-value: 190 kN. Hole pattern: 110 x 100 mm. Towing eye Ø: 50 mm. Load capacity: 2500 kg. Colour: Black. Lock: Standard drawbar eye. A: 250 mm. No. of holes: 8. B: 100 mm. Description: The ring and shaft dimensions of the drawbar eye comp
Read more.
50.000+ technical products
Worldwide shipping*
30-day return policy
Rating 9.0/10 (464 reviews)
Larger quantity required?
Product description
Drawbar eye
Version: Flange
D-value (kN): 190
Hole pattern (mm): 110 x 100
Towing eye Ø: 50 mm
Load capacity (kg): 2500
Colour: Black
Lock: Standard drawbar eye

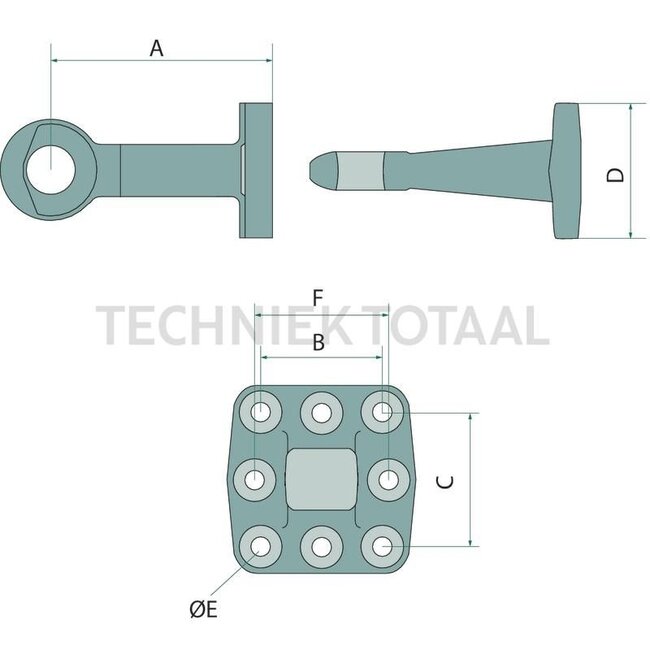

A (mm): 250
No. of holes: 8
B (mm): 100
Description: The ring and shaft dimensions of the drawbar eye comply with DIN 74053 (ISO 1102). Product advantages: Forged from high-strength material.
Hole (mm): M17
C (mm): 110
D (mm): 154
Flange: 8 holes
Included in delivery: Includes 1x drawbar eye 770ZO74053-50D1 with type plate. An interchangeable drawbar eye socket is also included.

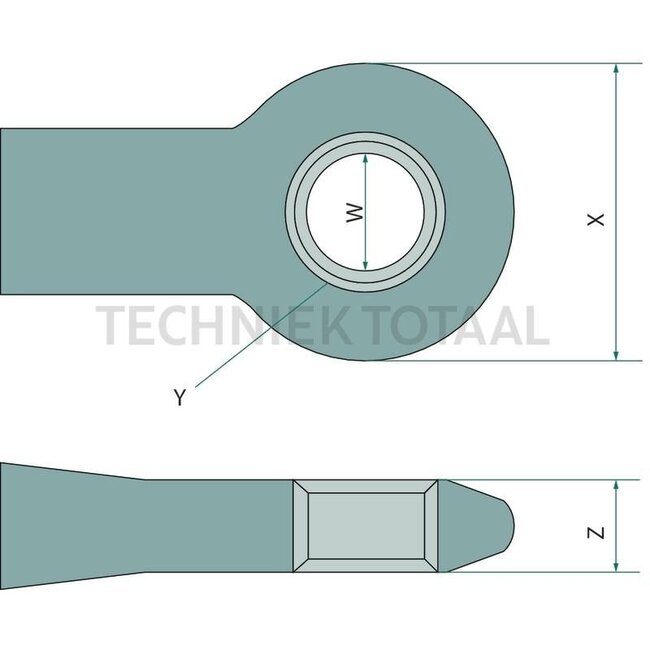

W (mm): 50
X (mm): 115
Y (mm): 32,5
F (mm): 110
Z (mm): 45
Assembly notes: Drawbar eyes in accordance with DIN 74053 (ISO 1102). In the event of wear, a suitable interchangeable drawbar eye socket can be ordered for 770ZO74053-50D1 (closed), part number 770ZOB74053D.
