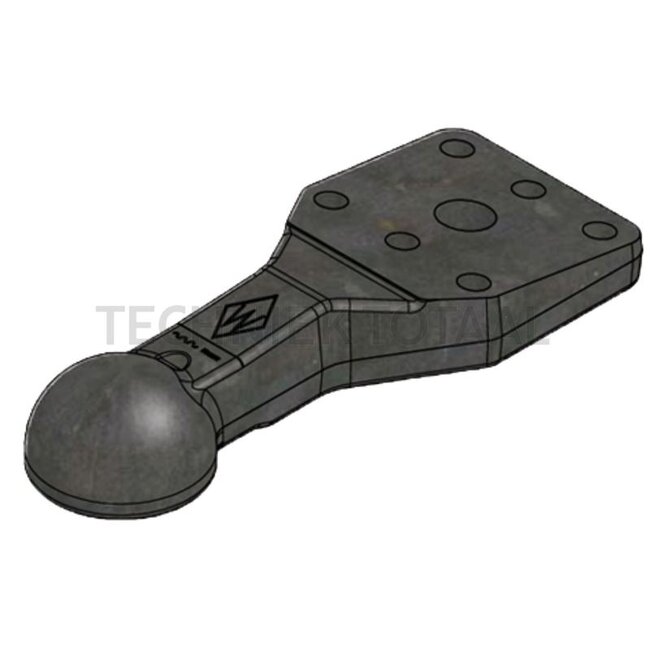

Walterscheid Drawbar eye ball 80, 314,5 mm, flange 115 x 130 mm, 7-hole | 8004442

-21%

Walterscheid Drawbar eye ball 80, 314,5 mm, flange 115 x 130 mm, 7-hole | 8004442

€1.096,60

€866,95 Incl. 21% VAT

€716,49 Excl. VAT

Delivery time on request

Found in category:

Tractor & vehicle› Trailer couplings› Drawbar & drawbar eyes

60.000+ technical products
Worldwide shipping*
30-day return policy
Customer rating 9.3/10

Larger quantity required?

Any questions about this product?

Or do you need any help ordering? Feel free to get in touch with our support department at [email protected]. We're happy to help!

Product description

Walterscheid Drawbar eye

Replaces: 8004442

Technical data:

Length of overhang (mm): 314,5
Lock: ball 80
No. of holes: 7
Assembly notes: Spherical cap according to ISO 24347, angled to be screwed underneath
Load capacity (kg): 4000
Flange: 7 holes
Hole (mm): 6 x M22; 1 x M40
Description: This product is a spherical cap suitable for connection with a hitch ball D: 80 mm (ISO 24347). The areas of application include use on agricultural or forestry trailers. Product advantages: forged designed for the highest loads optimum clearance for angular movement of up to 36° grooves on the inside ensure optimum distribution of lubricating grease
Thickness (mm): 35,2
D-value (kN): 102,4
Hole pattern (mm): 115 x 130
Colour: Black
