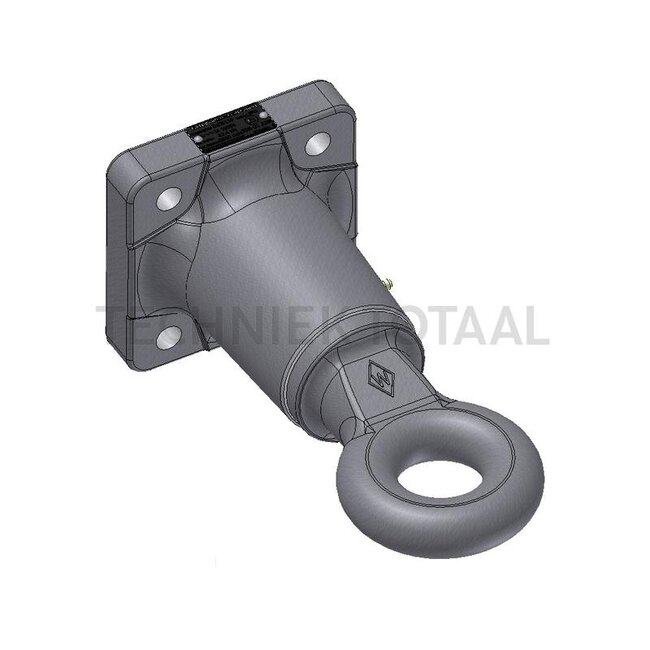

Walterscheid Drawbar eye
Replaces: 8005146

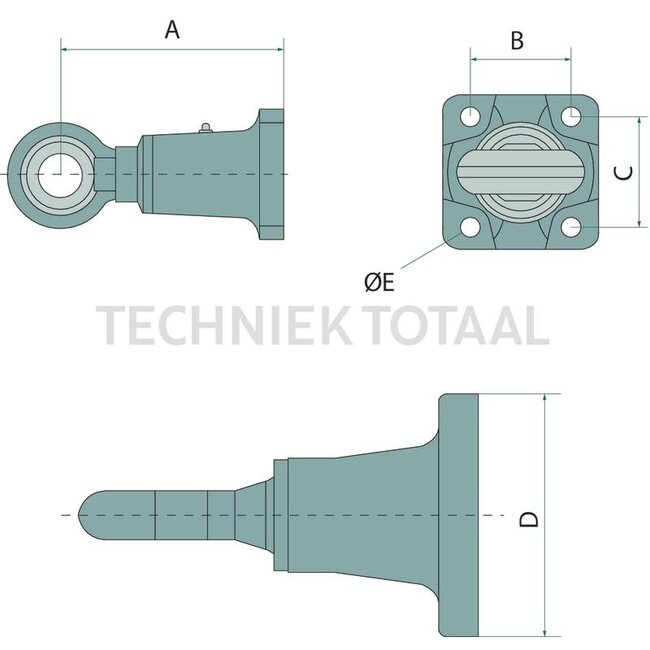

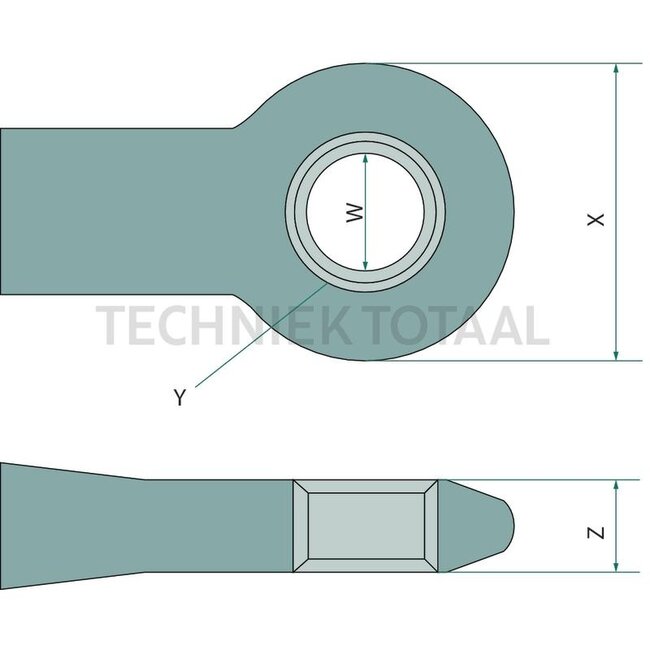

Technical data:
- D-value (kN): 82,4
- W (mm): 50
- X (mm): 110 - 115
- Y (mm): 32 - 34
- E (mm): 17
- Description: The ring dimensions of the drawbar eye comply with ISO 20019. The areas of application include use on agricultural or forestry trailers. Product advantages: Forged from high-strength material.
- C (mm): 110
- Z (mm): 35 - 37
- Load capacity (kg): 3000
- A (mm): 268
- Assembly notes: Drawbar eyes in accordance with DIN 9678 (ISO 5692-1). The ring dimensions comply with ISO 20019.
- Length (mm): 268
- No. of holes: 4
- Included in delivery: Includes 1x drawbar eye 770ZOD5110 with type plate.
- Version: Pick-up hitch
- Lock: Ring, not rotatable
- Flange: 4-hole
- B (mm): 100
- Towing eye Ø: 50 mm
- Hole (mm): M17
- Hole pattern (mm): 110 x 100
- D (mm): 154
- Colour: Black
Suitable for:
John Deere: M740I
Mc Hale: Fusion 3
Väderstad: Carrier, Carrier Drill, NZ Aggressive, Rapid, Rexius
