Product description

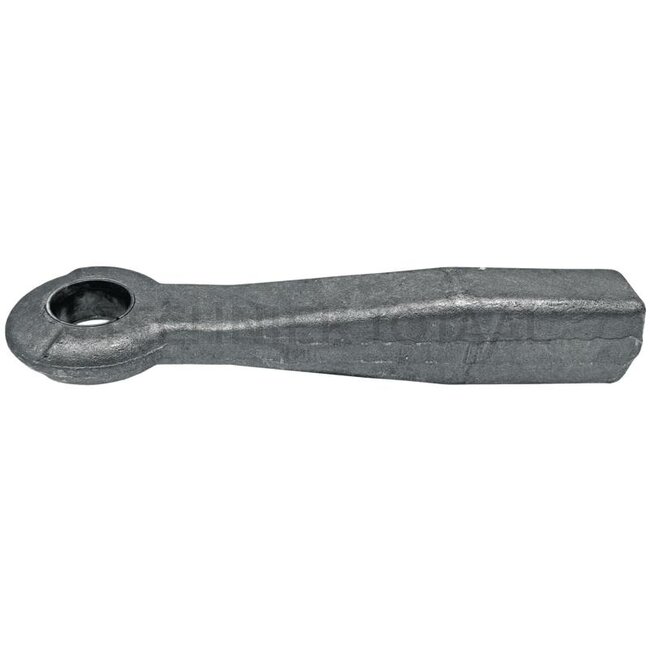

Drawbar eye

Eye Ø 40 mm

Replaces: 22084006, B47201025, 30000939, 8002258

Technical data:

  • Shaft: Solid shaft
  • Description: The ring and shaft dimensions of the drawbar eye comply with DIN 74054 (ISO 8755). The areas of application include use on agricultural or forestry trailers. Advantages: made of forged high-strength material
  • Length (mm): 335
  • V-value (kN): 30
  • Version: Weld-in
  • Load capacity (kg): 1350 up to 25 km/h 1000 over 25 km/h
  • Approval: M 2939
  • Shaft cross section W x H (mm): 56 x 65
  • Total length (mm): 390
  • D-value (kN): max. 125 kN (Mehrachsanhänger)
  • Eye Ø (mm): 40

Further information

Article number
22084006
SKU
22084006
