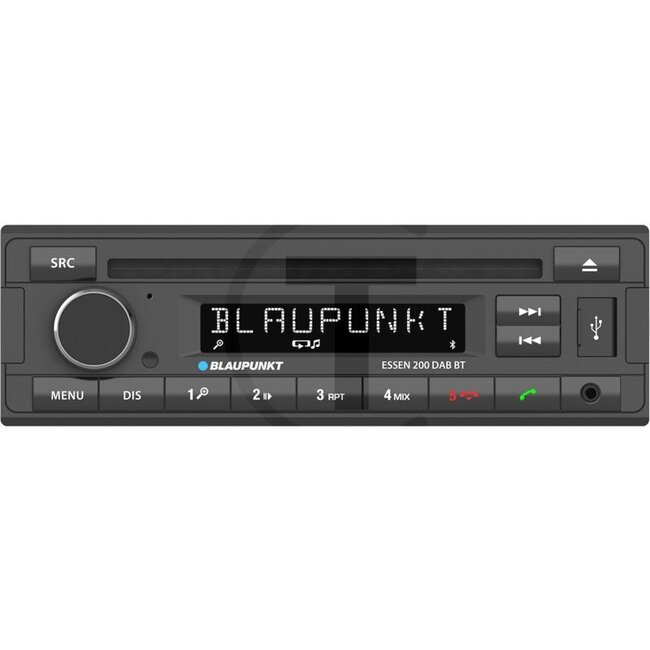

Highlights
• RDS high-grade tuner
• DAB+ tuner
• FM (RDS), AM
• Playback formats: MP3, WMA
• Fast reading of USB
• Various display modes (file, folder, title, artist, album and time)
• Media: CD-DA, CD-R, CD-RW, USB
• 9-digit display
• Integrated Bluetooth (HFP, A2DP)
• Integrated microphone
• Front USB
• Front aux-in
• 4 x 50 watts max.
• 2-channel preamplifier
• Sound presets (flat, rock, pop, classical)
• X-Bass
• White button illumination
ANALOGUE RADIO
• Tuner type: RDS high-grade tuner
• Frequency bands: 3x FM/2x AM
• Radio Data System (RDS): Alternative Frequency (AF), Clock Time (CT), Programme Service Name (PS), Regional Programme (REG), Traffic Announcement (TA), Traffic Programme (TP)
• Travel store: yes (FMT)
• Band scan/preset scan: yes/no
• Station memory: 15 FM/15 AM
• Sensitivity: lo/dx
• Interference suppression: yes
• Frequency response (Hz) -3 dB: 20 - 18,000
DAB FEATURES
• DAB/DAB+: yes/yes
• Service update: no
• Service scan: yes
• Station memory: yes
• Ensemble/programme browsing: no/yes
• Programme scan: no
• DAB-DAB service link: no
• DAB-FM service link: no
• DAB-DAB-FM service link: no
• Radio text: no
• PTY programmes: no
• Frequency response (Hz) +/- 3 dB: 20-18,000 Hz
BLUETOOTH
• Supported profiles: HFP, A2DP
• Audio streaming: yes
• Pairing (number of devices): 1
• Hands-free calls: yes
• Microphone: integrated
• Main functions: accept, end, reject calls, redial
• Access to mobile phone book: yes
(up to 100 contacts per phone)
MEDIA
• CD: CD-DA, CD-R, CD-RW
• Drive type: automatic loading
• USB: 1x front
MEDIA PLAYER
• Playback formats: MP3, WMA
• Title display: ID tag, folder/file
• Folder and file selection: no
• Display modes: yes (file, folder, title, artist, album, running time)
• Mix (random play)/repeat/scan: yes/yes/yes
• Bit rate (kbit/s): 32 -320
CD PLAYER
• Shockproof memory: yes
• Frequency response (Hz) -1 dB: 20 - 20,000
AUDIO/EQUALISER
• Bass/treble: yes/yes (+/- 7 steps)
• Balance/fader: yes/yes (+/- 9 steps)
• X-Bass: yes
• Sound presets: flat, rock, pop, classical
AMPLIFIER
• Number of channels: 4
• Max. power: 4 x 50 watts
• Sine wave power at 14.4 V: 4 x 25 watts
DISPLAY
• Type/digits: 1-line/9
• Colour: negative, black and white
• Clock display: 24/12 hour
INPUTS
• Aerial (number): 2 (FM ISO / DAB SMB 12 V Phantom)
• USB (number/type): 1 (front)
• Aux-in (number/type): 1 front (3.5 mm jack)
OUTPUTS
• Speaker (number): 4
• Preamplifier (channels): 2 channels (RCA)
• Preamplifier (voltage): 1.5 V (rms)
GENERAL
• Software update: via USB
• Confirmation beep: yes
• Menu language: English
• Control panel type: fixed panel
• Button illumination: white
• Permanent storage after loss of power: yes
• Ignition logic: yes
• Weight (kg): approx. 1.4
• Dimensions (mm): 188 x 58 x 165
• DAB window aerial: optional
• ISO connector for cable set: yes, 16-pin connector
• Operating instructions: yes
• Display packaging: yes
