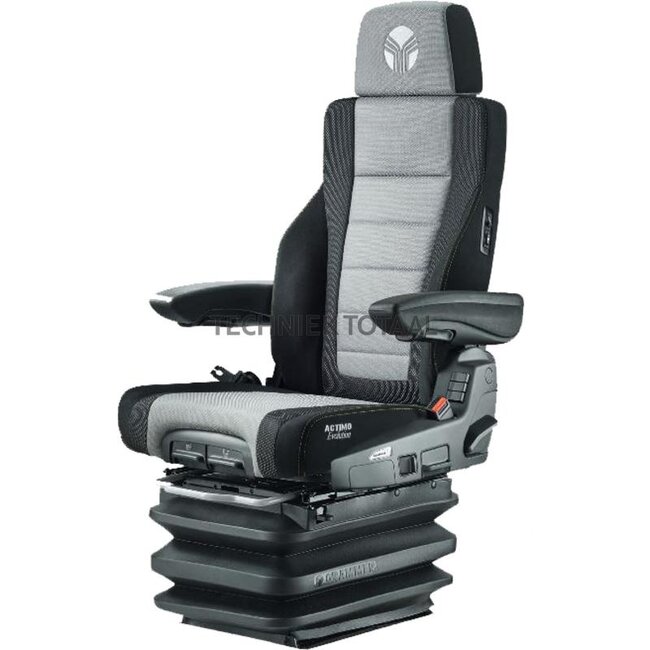

GRAMMER Excavator seat Actimo Evolution MSG 95EL/722, air suspension, 24 V

Construction machinery 24V

Replaces: 1462954

Technical data:

• Length (mm): 632
• Joystick console: Optional
• Armrest: Yes
• Equipment: <b>Prepared for attaching control lever brackets</b>
• Rückenverlängerung: Yes
• Seat type: MSG95EL/722
• On-board voltage (V): 24
• Lordosenstütze: Pneumatic
• Height (mm): 1098
• Seat contact switch: Yes
• Seat width (mm): 490
• Version: High-end seat with electronic weight adjustment The ACTIMO EVOLUTION has a comfort package that will delight even the most demanding drivers. The pneumatic suspension with electronic weight adjustment together with features such as automatic positioning system, adjustable damper, low-frequency suspension and fore/aft isolator ensure top-class ergonomics and safety. The side contour adjustment in the back cushion guarantees a relaxed and healthy sitting position with reduced strain on the spine. Another highlight of the ACTIMO EVOLUTION is the active seat climate control. It wicks away moisture to keep the driver cool, and on cold days the seat heater ensures a pleasant temperature. ACTIMO EVOLUTION STHT prepared for attaching control lever brackets GRAMMER offers the ACTIMO EVOLUTION STHT with a pre-assembled control lever bracket console especially for use in excavators. The control lever bracket boxes are optional and allow the machine to be controlled comfortably. The controls for this seat are located at the front for easy accessibility<b>(joysticks not included)</b>.
• APS: Yes
• Seat heater: Yes
• Fore/aft isolator: Yes
• Restraint system: Yes, ERL system
• Technical data: The features of the Actimo Evolution excavator seat include: Front controls Suspension travel 100 mm Automatic weight adjustment (50 kg - 130 kg) Longitudinal adjustment 210 mm Backrest tilt adjustment, max. 80 degrees Headrest Pneumatic lumbar support Armrests: height and tilt adjustable, folding Storage pocket Belt system (the ELR system only locks the belt once a certain angle and/or acceleration is reached. This allows a relatively high degree of freedom of movement, and therefore a high level of comfort. The system is well-known in the automotive sector.) Damper for vertical suspension with 4-way adjustment (hard/soft) APS: automatic positioning system Continuous height adjustment, 80 mm air-assisted Lockable fore/aft isolator Seat cushion depth and tilt adjustment Active seat climate control (fans in the cushion) Pneumatic side contour adjustment Seat heater 24V, 2-stage Seat contact switch Seat cushion width: 490 mm (type 722) Track gauge: 260 mm Cover: fabric, new design
• Suspension: Air suspension
• Sitzkühlung / Klimatisierung: Yes
• Upholstery type: Fabric / new design
• Track gauge (mm): 260

Suitable for:

Construction machinery
