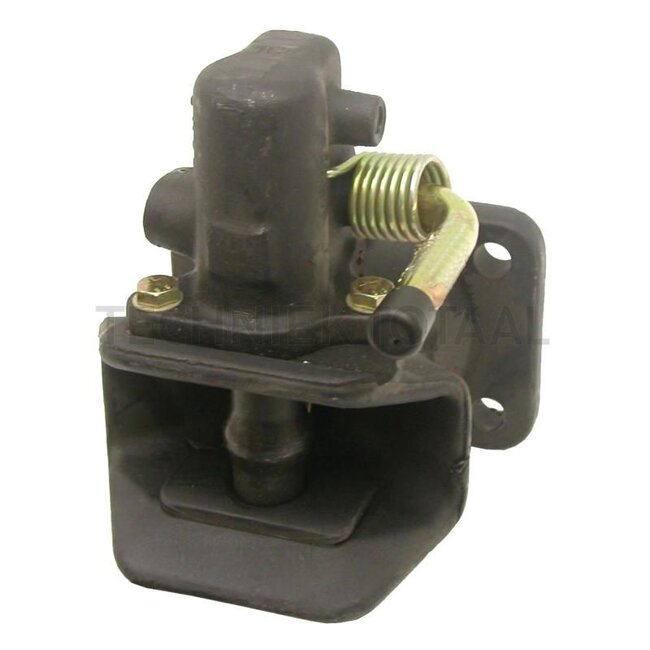

Name: Walterscheid Flange hitch automatic 38 mm, 140 x 80 mm, M21, 2000 kg, 65 kN | 8002794
Brand: Walterscheid
SKU: 770KU9408A
Price: 1273.28 EUR

Walterscheid Flange hitch automatic 38 mm, 140 x 80 mm, M21, 2000 kg, 65 kN | 8002794

Flange hitch

Lock: Automatic bolt

Connecting pin (mm): 38

Hole pattern (mm): 140 x 80

Hole (mm): M21

Load capacity (kg): 2000

D-value (kN): 65

Colour: Black

No. of holes: 4

Description: This product is an automatic trailer hitch. The jaw dimensions and area of application comply with DIN 11029. It is designed with a lever trigger system, i.e. the coupling process is triggered by moving a drawbar eye into the jaw and pressing back the trigger lever. The hitch is normally closed and locked. This version has a spherical hitch bolt (D: 38 mm) and can be pivoted 360°. The torque required for this purpose is 100 to 150 Nm. The areas of application include use on agricultural or forestry vehicles, self-propelled work machines and trailers. Advantages: forged connecting flange

Hole Ø (mm): 21

Drawbar eye: DIN 11026, 11043, 74054 (ISO 8755) = 40 mm
DIN 74053 (ISO 1102) = 50 mm

Assembly notes: Suitable for drawbar eyes according to DIN 74054 (ISO 8755).

Passend voor:

Deutz-Fahr: 8002794, Serie 06, D 2506, D 4506, D 5006, D 5506, D 6006, D 7006, D 7506, D 9006, Serie 07, D 5007

Fiat: 8002794, Serie 80, 580, 680, 780, 880, 980, 980 DT, Serie 90, 90-90, 100-90, 110-90, 115-90
