Walterscheid Flange hitch - 770KU540-45STB | Lock: Manual pin | Hole pattern: 140 x 80 mm | Load capacity: 2000 kg | D-value: 82,4 kN | Hole: M21 mm | No. of holes: 4 | Colour: Black | Connecting pin: 31 mm | Description: This product is a non-automatic trailer hitch.
€597,26
€503,38Incl. VAT
In stock
€416,02
Excl. VAT
Lock: Manual pin. Hole pattern: 140 x 80 mm. Load capacity: 2000 kg. D-value: 82,4 kN. Hole: M21 mm. No. of holes: 4. Colour: Black. Connecting pin: 31 mm. Description: This product is a non-automatic trailer hitch. The jaw dimensions and area of applicat
Read more.
40.000+ technical products
Worldwide shipping*
30-day return policy
Rating 9.0/10 (501 reviews)
Larger quantity required?
Product description

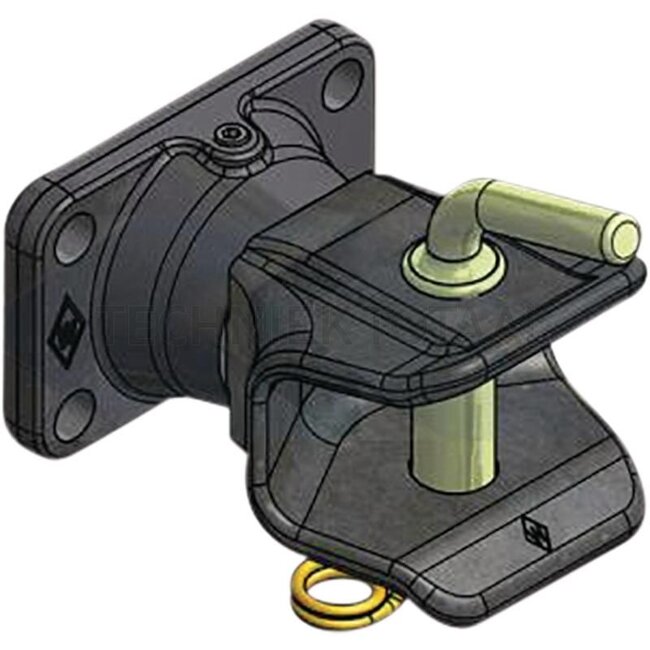

Flange hitch
Lock: Manual pin
Hole pattern (mm): 140 x 80
Load capacity (kg): 2000
D-value (kN): 82,4
Hole (mm): M21
No. of holes: 4
Colour: Black
Connecting pin (mm): 31
Description: This product is a non-automatic trailer hitch. The jaw dimensions and area of application comply with DIN 11028, RREG 2009/144/EC, VO (EU) 2015/208, UN ECE R147 and class c40. This version has a cylindrical hitch bolt (D: 31 mm) and can be pivoted 360°. The torque required for this purpose is 100 to 150 Nm. The areas of application include use on agricultural or forestry vehicles, self-propelled work machines and trailers. Advantages: forged connecting flange
Included in delivery: Includes 1x flange hitch 770KU540-45STB and 1x socket pin 770STB514.
Assembly notes: Suitable for drawbar eyes according to DIN 11026 (ISO 5692-2)/DIN 11043/DIN 74054 (ISO 8755)/DIN 74053 (ISO 1102)/DIN 9678 (ISO 5692-1) and ‘Swiss drawbar eye’.
Passend voor:
Fiat: 8005165, Serie 80, 580, 680, 780, 880, 980, 980 DT, Serie 90, 90-90, 100-90, 110-90, 115-90
