Scharmüller Flange hitch CH-I without remote control capability - 777051603021, 5.1603.021-A02, 05.1603.021-A02 | Lock: Automatic bolt | Hole pattern: 160 x 100 mm | Load capacity: 2000 kg | D-value: 89,3 kN | Hole: M20 mm | No. of holes: 4 | Colour: Black | Connecti

€1.040,00

€840,60 Incl. VAT

In stock

€694,71 Excl. VAT

Lock: Automatic bolt. Hole pattern: 160 x 100 mm. Load capacity: 2000 kg. D-value: 89,3 kN. Hole: M20 mm. No. of holes: 4. Colour: Black. Connecting pin: 38 mm. Hole Ø: 21 mm. Thread: M20. Drawbar eye: DIN 11026, 74054, (ISO 8755) = 40 mm, DIN 74053 (ISO Read more.

40.000+ technical products
Worldwide shipping*
30-day return policy
Rating 9.2/10 (532 reviews)

Larger quantity required?

Product description

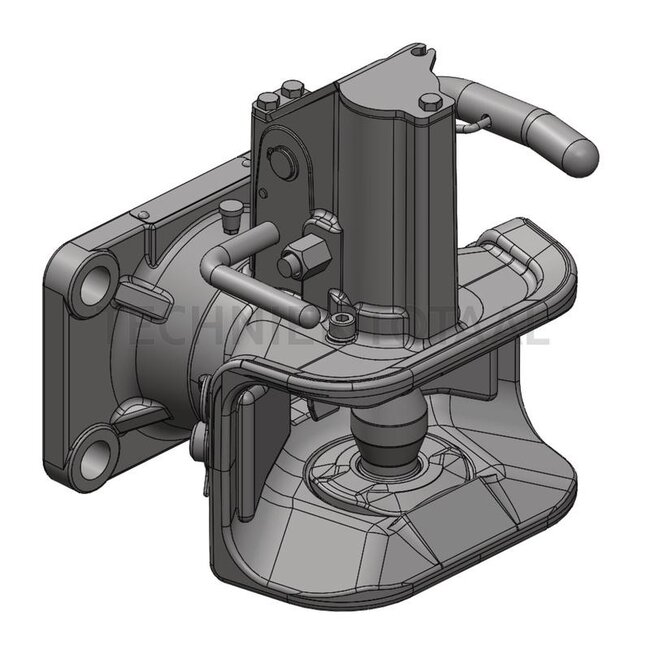

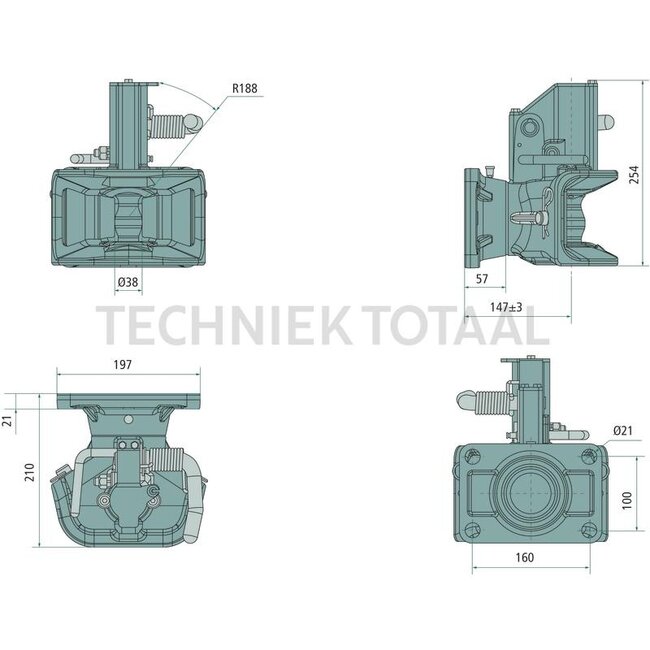

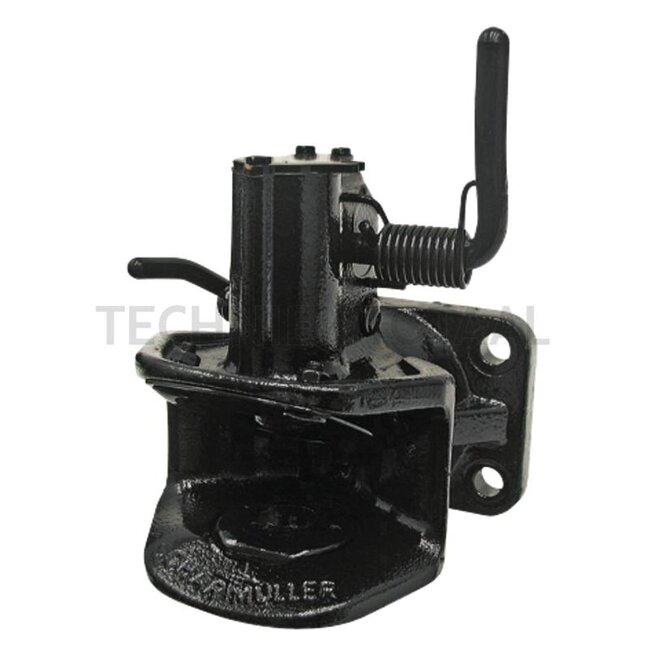

Flange hitch CH-I without remote control capability

Lock: Automatic bolt

Hole pattern (mm): 160 x 100

Load capacity (kg): 2000

D-value (kN): 89,3

Hole (mm): M20

No. of holes: 4

Colour: Black

Connecting pin (mm): 38

Hole Ø (mm): 21

Thread: M20

Drawbar eye: DIN 11026, 74054
(ISO 8755) = 40 mm
DIN 74053 (ISO 1102) = 50 mm

Further information

Article number

777051603021

SKU

777051603021
