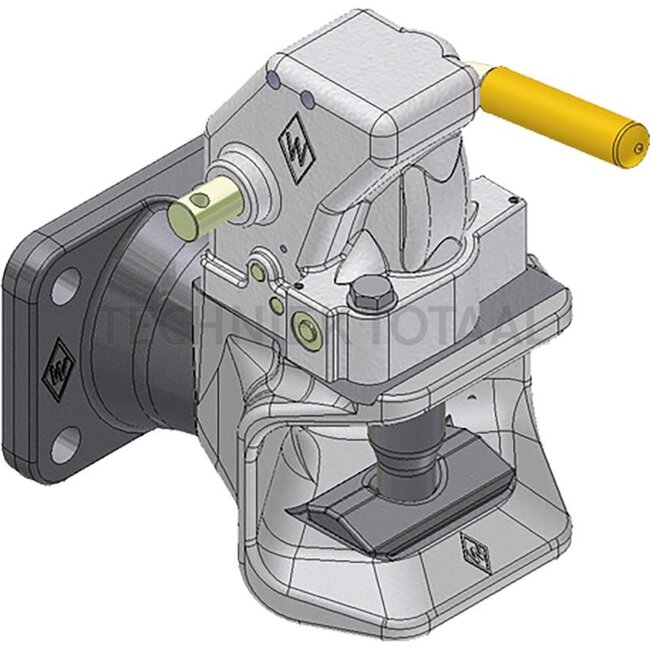

Walterscheid Flange hitch
Replaces: 8004869
Technical data:
- Lock: Automatic bolt
- No. of holes: 4
- D-value (kN): 45
- Connecting pin (mm): 32
- Hole pattern (mm): 120 x 55
- Colour: Black
- Hole Ø (mm): 15
- Hole (mm): M15
- Description: This product is an automatic trailer hitch. The jaw dimensions and area of application comply with DIN 11028, RREG 2009/144/EC, VO (EU) 2015/208, UN ECE R147 and class c40. It is designed with a lever trigger system, i.e. the coupling process is triggered by moving a drawbar eye into the jaw and pressing back the trigger lever. The hitch is normally closed and locked. This version has a cylindrical hitch bolt (D: 32 mm) and can be pivoted 360°. The torque required for this purpose is 100 to 150 Nm. The areas of application include use on agricultural or forestry vehicles, self-propelled work machines and trailers. Advantages: forged connecting flange, hitch bolt can be freely rotated 360 degrees
- Load capacity (kg): 1250
