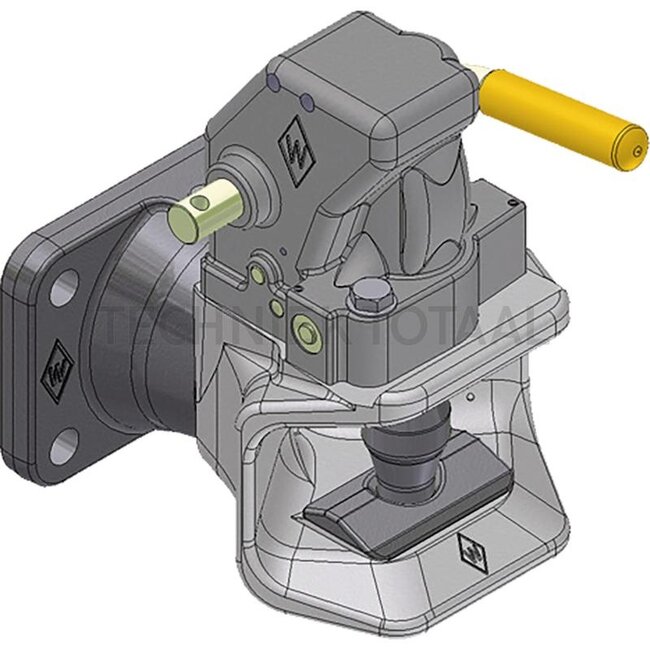

Walterscheid Flange hitch
Replaces: 8004784
Technical data:
- Description: This product is an automatic trailer hitch. The jaw dimensions and area of application comply with DIN 11028, RREG 2009/144/EC, VO (EU) 2015/208, UN ECE R147 and class c40. It is designed with a lever trigger system, i.e. the coupling process is triggered by moving a drawbar eye into the jaw and pressing back the trigger lever. The hitch is normally closed and locked. This version has a spherical hitch bolt (D: 37 mm) and can be pivoted 360°. The torque required for this purpose is 100 to 150 Nm. The areas of application include use on agricultural or forestry vehicles, self-propelled work machines and trailers. Advantages: forged connecting flange, hitch bolt can be freely rotated 360 degrees
- D-value (kN): 45
- Assembly notes: Suitable for drawbar eyes according to DIN 11026 (ISO 5692-2)/DIN 11043/DIN 74054 (ISO 8755)/DIN 9678 (ISO 5692-1).
- Hole Ø (mm): 15
- Load capacity (kg): 1250
- To fit: Claas: Torion 639, Torion 535; Kramer: Tremo 501; Liebherr: L506 Compact; Schaeffer: 2032, 3550
- Hole (mm): M15
- Connecting pin (mm): 37
- No. of holes: 4
- Hole pattern (mm): 120 x 55
- Colour: Black
- Lock: Automatic bolt
Suitable for:
Fendt: 5275C, Farmer 108 (Typ 278), Farmer 200 (S) (V), Farmer 201, Farmer 203, Farmer 204, Farmer 205, GT 231, 9490X
John Deere: 2320, W540
Massey Ferguson: 9380
Same: Delfino 35
