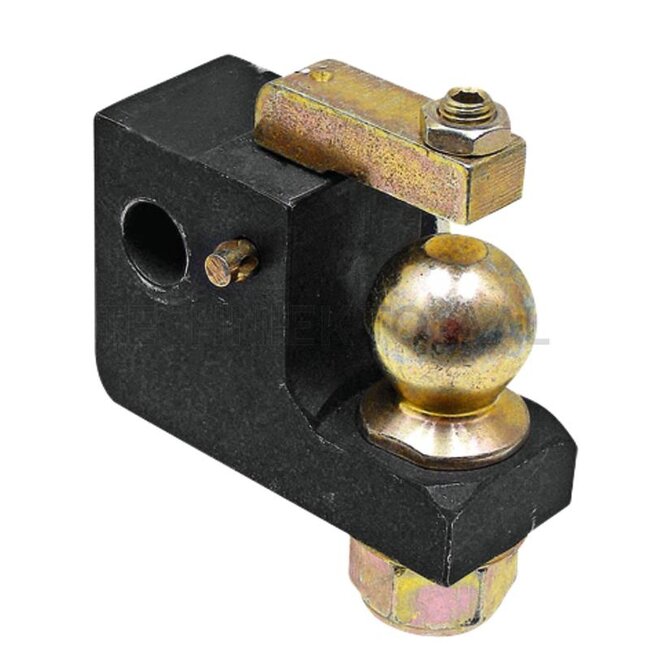

Walterscheid Forced steering
With anti-twist protection
Replaces: 8002839
Technical data:
- Assembly notes: Both ends
- Description: Forced steering components are used to transfer steering forces between the towing vehicle and agricultural and forestry trailers. The central element for connection to the trailer steering rod is a 50 mm ball or a 30 mm bolt. A spherical cap 50 in accordance with ISO 26402 or a spherical plain bearing 30 in accordance with DIN ISO 12240-4 is mounted as a counterpart on the steering cylinder piston rods of the forced steering systems. Advantages: suitable for Walterscheid Easy Fit Steering System
- Dimensions (mm): Locking bolt Ø: 25
- Colour: Chrome 6-free galvanised
- Lock: ball 50
