Walterscheid Forced steering yoke pin Ø 30 mm, width 60 mm, right attachment | 8004824
€630,05
€498,13 Incl. 21% VAT
€411,68 Excl. VAT
Delivery time on request
Dimensions (mm): Width: 60, Bolt Ø: 30 | Colour: Chrome 6-free galvanised | Lock: Manual, cylindrical hitch bolt | Included in delivery: Includes 1x forced steering clevis, 1x standard bolt 770NB30140KPL, 1x linch pin and 2x hexagon head bolt M20x80. Fixi Read more.
Worldwide shipping*
Customer rating 9,3/10
30-day return policy
98,000+ technical products
Larger quantity required?
Any questions about this product?
Or do you need any help ordering? Feel free to get in touch with our support department at [email protected]. We're happy to help!
Product description

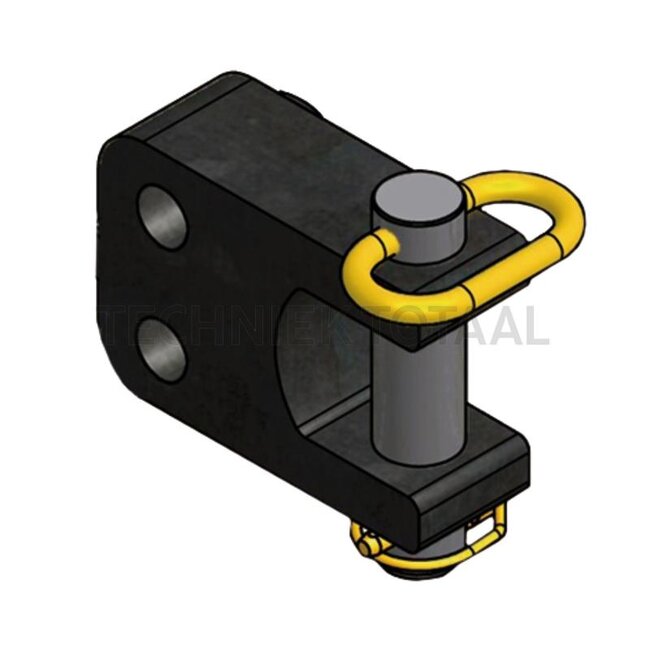

Walterscheid Forced steering
For straight mounting
Replaces: 8004824
Technical data:
Dimensions (mm): Width: 60, Bolt Ø: 30
Colour: Chrome 6-free galvanised
Lock: Manual, cylindrical hitch bolt
Included in delivery: Includes 1x forced steering clevis, 1x standard bolt 770NB30140KPL, 1x linch pin and 2x hexagon head bolt M20x80. Fixing elements and intermediate plates are not included and must be ordered at the same time if required.
Assembly notes: Both ends
Description: Forced steering components are used to transfer steering forces between the towing vehicle and agricultural and forestry trailers. The central element for connection to the trailer steering rod is a 50 mm ball or a 30 mm bolt. A spherical cap 50 in accordance with ISO 26402 or a spherical plain bearing 30 in accordance with DIN ISO 12240-4 is mounted as a counterpart on the steering cylinder piston rods of the forced steering systems. Advantages: suitable for Walterscheid Easy Fit Steering System
