Product description
GRAMMER Primo XL Plus
MSG75GL/2731
Replaces: 1453491

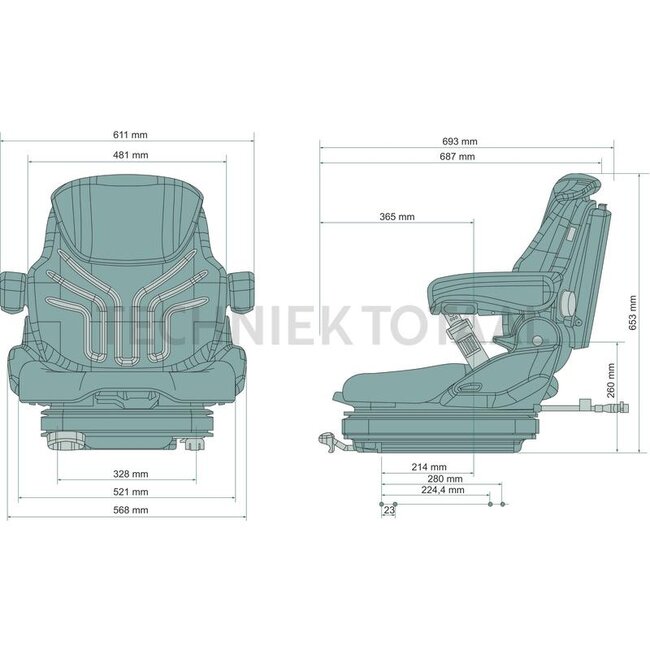

Technical data:
Track gauge (mm): 328
Armrest: Optional
Seat type: MSG75GL/2731
Rückenverlängerung: Optional
Seat contact switch: Yes
Upholstery type: Fabric
Lordosenstütze: Mechanical
Suspension: Air suspension
Restraint system: Yes
Fore/aft isolator: Optional
Equipment: Pneumatic weight adjustment 45-170 kg Height adjustment 60 mm Longitudinal adjustment 210 mm
Seat heater: Optional
Seat width (mm): 521
Length (mm): 693
Width (mm): 568
On-board voltage (V): 24
Height (mm): 653
Version: The Primo XL Plus impresses with its low-profile pneumatic suspension, which ensures good driving comfort. The 110 mm suspension travel gently absorbs even the largest vibrations and shocks. The suspension can be easily adjusted to the correct driver weight at the push of a button. The narrow yet comfortable top part enables fatigue-free work. The seat meets the latest safety requirements, and is equipped as standard with a seat and belt contact switch and a Duo Sensitiv ELR belt system with orange belt strap. Individually adjustable, mechanical lumbar support completes the Primo XL Plus package.
Suspension travel 110 mm Pneumatic weight adjustment 45-170 kg Longitudinal adjustment 210 mm Backrest tilt adjustment max. 35° Lumbar support with mechanical adjustment Duo Sensitiv restraint system with retractor Belt buckle switch Seat contact switch Track gauge 328 mm Seat width 520 mm Cover: fabric blue black
