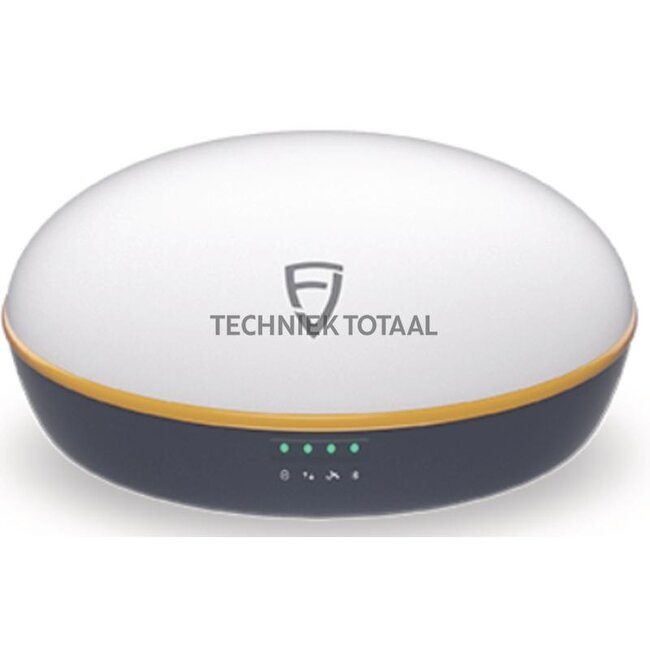

FJDynamics GNSS base station V1t with activation code, RTK, range 5 km

Technical data:

• Version: Key features RTK-GNSS technology - maximum precision for surveying and machine control Activation code V1t - fast activation and commissioning of the base station Easy connectivity - wireless connection for smooth signal transmission Robust and weatherproof design - designed for demanding outdoor applications Compatible with FJDynamics systems - seamless integration into existing machine controls
• Technical data: Size: ∅162*86 mm 1.07 kg IP67 Operating temperature -30℃ ~ +60℃ Battery capacity 6500 mAh max. 10 hours Working range 5 km >Satellite constellation GPS: L1, L1C/A, L2C, L2P, L5BDS-2: B1I, B2I, B3IBDS-3: B1I, B3I, B1C, B2a, B2bGLONASS: G1, G2, G3*Galileo: E1, E5a, E5b, E6C*, AltBOC*QZSS: L1, L2C, L5, L1C*, L1-SALFSBAS: L1C/A,L5*IRNSS: L5*L-ban GNSS positioning accuracy Single positioning: horizontal 1.5 m RMS, vertical 3 m RMS; RTK horizontal: 8 mm + 1 ppm RMS, vertical 15 mm + 1 ppm RMS 965 channels Data format RTCM2, XRTCM3.X, NMEA-0183
• Additional information: The base station with activation code V1t is the perfect solution for farmers, civil engineers and surveying experts who need a stable, reliable and highly accurate GNSS base station.
• Included in delivery: V1 GNSS receiver Antenna
