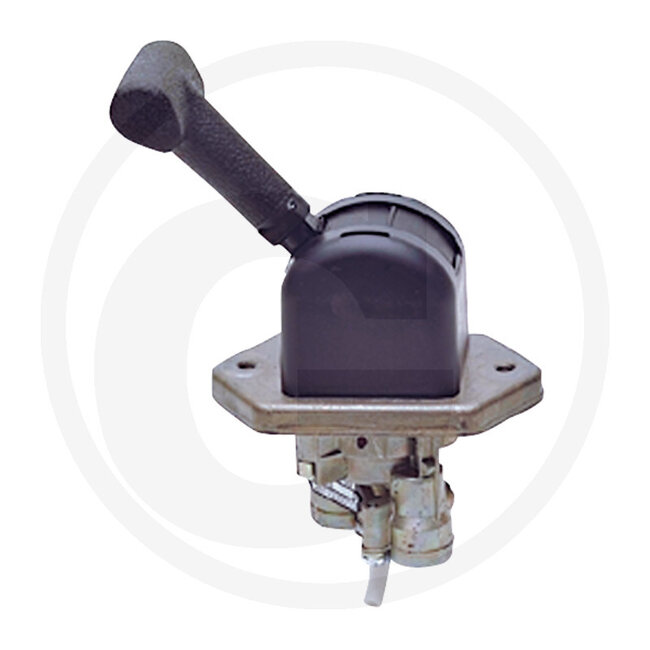

Wabco Hand brake valve

Replaces: 9617230010, 961 723 001 7

Technical data:

• Outlet connection: 21: M16 x 1,5 JED-464 (Voss)
• Version: Black lever and mounting plate
• Fixing: 2 holes M6 spacing 80 mm
• Connection: Downwards
• Temperature range (°C): -40°C to +80°C
• To fit: ALEXANDER DENNIS • DAF • FREIGHTLINER • IRISBUS • KENWORTH • MACK • MAFI • PETERBILT • SCANIA • TATRA • VAN HOOL • VDL • VOLVO-TRUCKS
• Inlet connection: 1: M16 x 1,5 JED-464 (Voss)
• Ventilation: Ø 6 mm 45° sideways
• Operating pressure max. (bar): 10

Suitable for:

Fendt: Favorit 711 (Typ 711), Favorit 712 (Typ 712), Favorit 714 (Typ 714), Favorit 716 (Typ 716), Favorit 816 (Typ 816), Favorit 818 (Typ 818), Favorit 822 (Typ 822), Favorit 824 (Typ 824), Favorit 916 (Typ 916), Favorit 918, Favorit 920 (Typ 920), Favorit 924 (Typ 924), Favorit 926 (Typ 926), Fendt 711 (Typ 711), Fendt 712 (Typ 712), Fendt 712 (Typ 724), Fendt 714 (Typ 714), Fendt 714 (Typ 725), Fendt 716 (Typ 716), Fendt 716 (Typ 726), Fendt 718 (Typ 727), Fendt 815 (Typ 715), Fendt 817 (Typ 717), Fendt 818 (Typ 718), Fendt 818 (Typ 729), Fendt 820 (Typ 731), Fendt 916 (Typ 916), Fendt 918, Fendt 920 (Typ 920), Fendt 924 (Typ 924), Fendt 926 (Typ 926), Fendt 930 (Typ 930), Xylon 520, Xylon 522, Xylon 524
