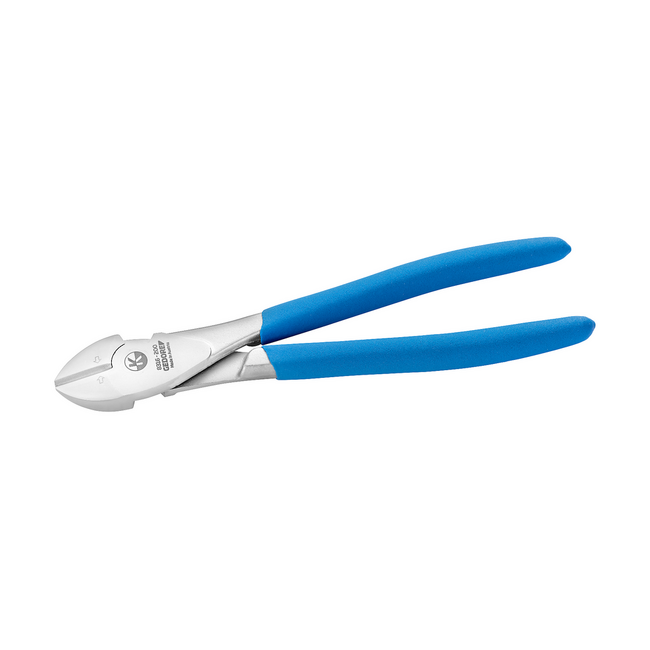

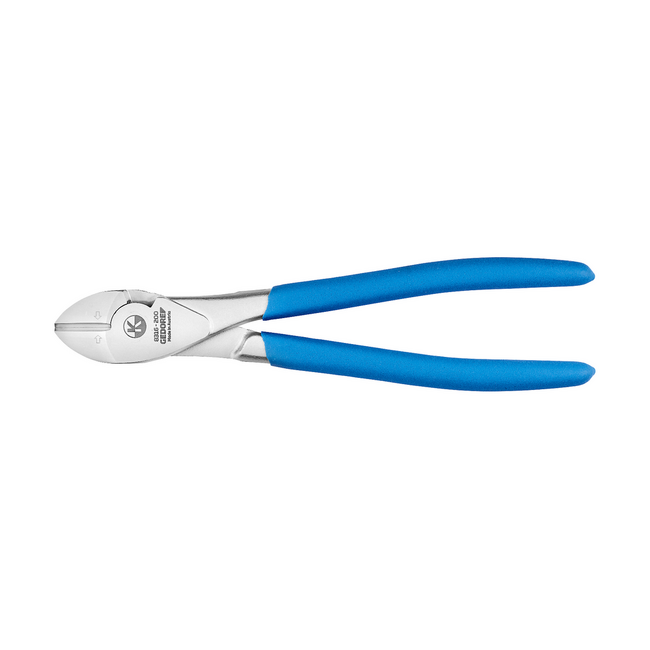

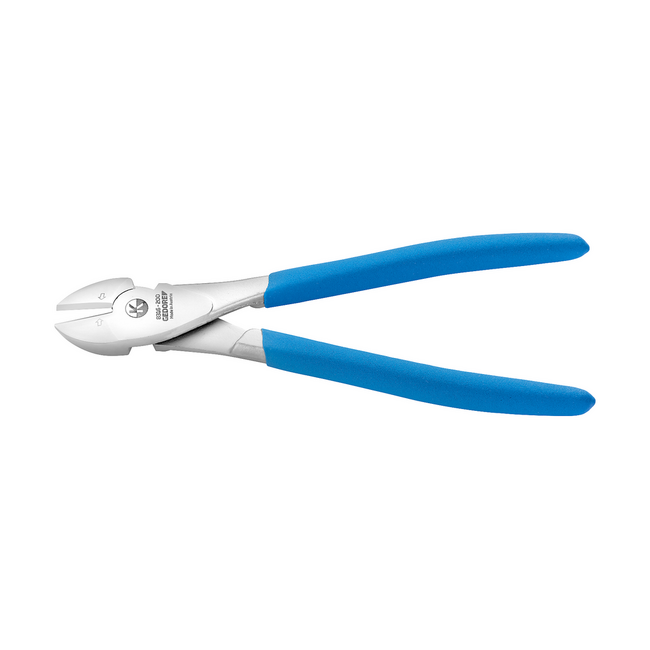

Heavy-duty 200 mm diagonal cutters with high leverage and an offset joint, cutting piano wire up to 2.5 mm and hard wire up to 3 mm with less effort.

• Acc. to DIN ISO 5749
• Good lever action for easy cutting
• GEDORE special hardened and tempered steel, drop-forged, oil-hardened and annealed
• Induction hardened cutting edges (63 - 65 HRC) enable consistent cutting performance over a long period of time
• Highest cutting performance with less effort due to the optimum interaction of cutting geometry, eccentric rivet bearing and ergonomic handle design
• Version TC = chrome-plated, with blue dipped handles

Technical data

• Item number: 8316-200 TC
• EAN: 4010886976210
• Total length: 210 mm
• Total width: 55 mm
• Total height: 23 mm
• Weight: 0.27 kg
• Material: Heat-treated steel
• Width of head 1: 28 mm
• Surface: chrome-plated
• Head height 1: 22 mm
• Standard: DIN ISO 5749
• Handle design: dip-insulated
• Cutting edge length: 22 mm
• Cutting values: Piano wire: 2.5 mm / 13 AWG Hard wire: 3 mm / 9 AWG Medium hard wire: 4.2 mm / 6 AWG
• Hardness of cutting edge: 63-65 HRC
• Joint types: applied joint
• Blade shape: with facet
• Head Thickness T1: 11 mm
• Handle colour: blue
• Thickness of point: 1 mm
• With cutting edge: yes
• Hardening process: Induction hardened
• Bevel: with
