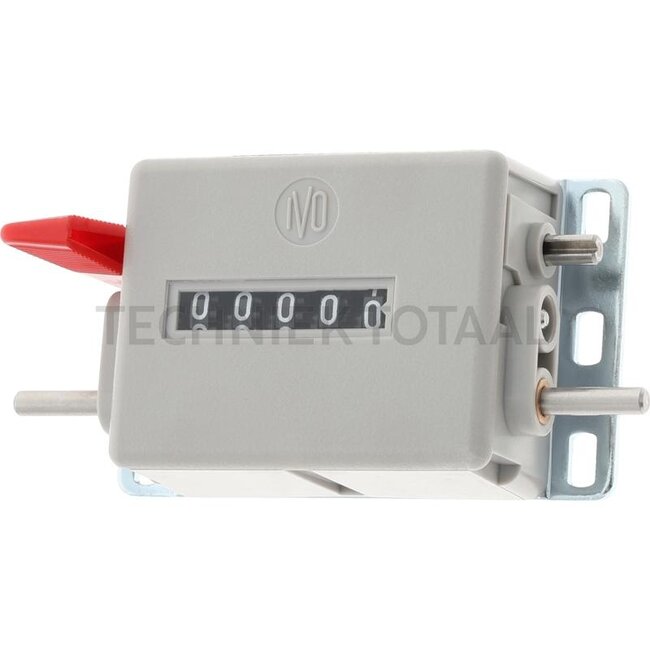

GRANIT Hectare meter

Mechanical revolution counter Drive shaft on both sides Direction of rotation clockwise

Technical data:

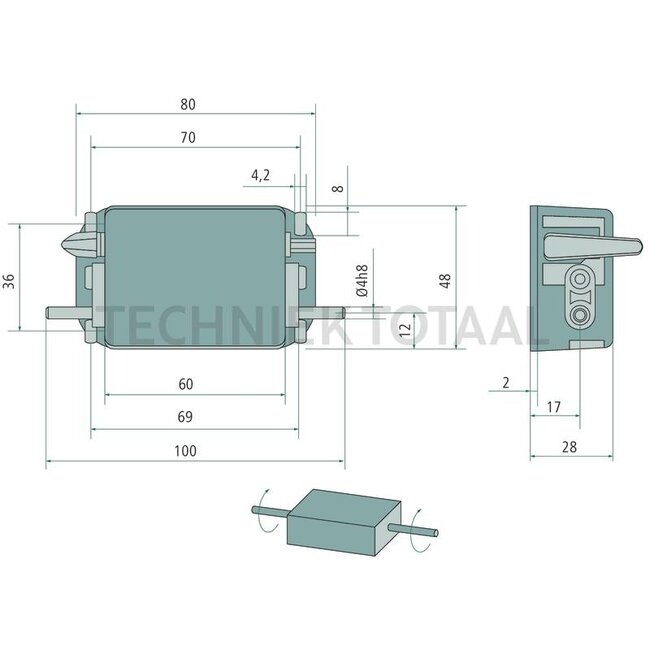

• • Function: revolution counter • Display: white digits on black • Number of digits: 5-digit • Digit height: 4.5 mm • Zero setting: manual with zero setting lever. Do not snap the lever or operate it jerkily. • Counting method: adding in a specified direction of rotation, subtracting when rotating backwards. 1 revolution = 1 number • Drive shaft: on both sides, ø4 mm • Operating speed: ≤3000 rpm • Measuring range: 99 999 • Ambient temperature: 0 - 60°C • Housing type: surface-mounted housing with mounting plate • Housing colour: grey • Dimensions W x H x L: 69 x 48 x 28 mm • Base plate dimensions: 80 x 48 mm • Mounting type: base plate with 6 slotted holes • Material: Housing: Hostaform POM, grey Base plate: galvanised steel
