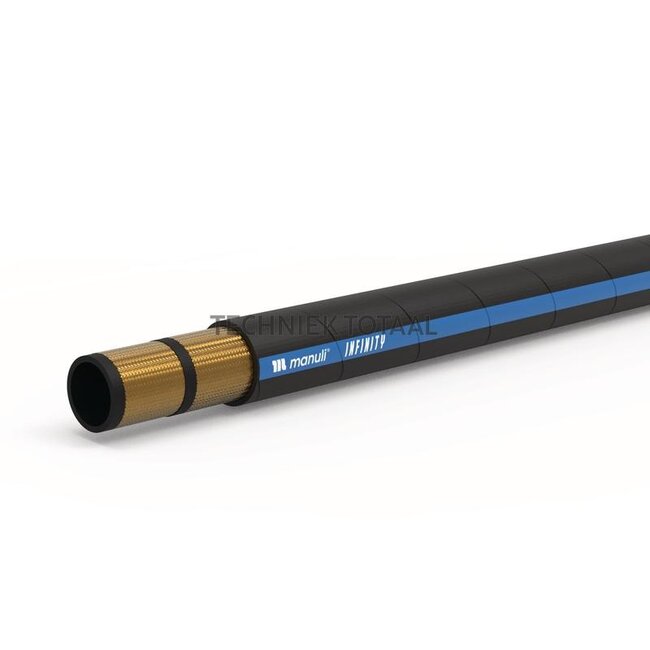

Manuli Hydraulic hose 2SC Infinity DN 08 (5/16"), 400 bar

MANULI hydraulic hose

Replaces: H01164008MBC9

Technical data:

• Outer Ø (mm): 14.7
• Operating pressure max. (bar): 400
• Weight (g/m): 325
• Comparison no.: H01164008MBC9
• Type testing: MSHA; CU-TR; FRAS; B
• Hose type: INFINITY
• Version: 2 steel wire braids
• Description: 2 SC, EN857
• Bending radius (mm): 55
• Press fitting (non-skive): 815M03400-05
• Nominal width: DN 8 - 5/16"
• Press fitting (skive): 815M00120-05
• Burst pressure (bar): 1600
