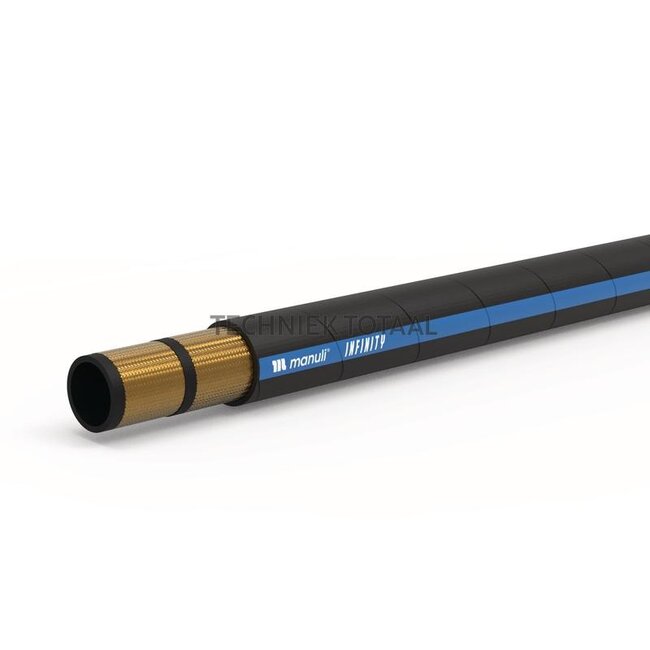

Manuli Hydraulic hose 2SC Infinity DN 10 (3/8"), 400 bar

MANULI hydraulic hose

Replaces: H01164010MBC9

Technical data:

• Weight (g/m): 440
• Comparison no.: H01164010MBC9
• Burst pressure (bar): 1600
• Type testing: MSHA; CU-TR; FRAS; B
• Press fitting (skive): 815M00120-06
• Press fitting (non-skive): 815M03400-06
• Nominal width: DN 10 - 3/8"
• Bending radius (mm): 65
• Version: 2 steel wire braids
• Operating pressure max. (bar): 400
• Hose type: INFINITY
• Description: 2 SC, EN857
• Outer Ø (mm): 16.8
