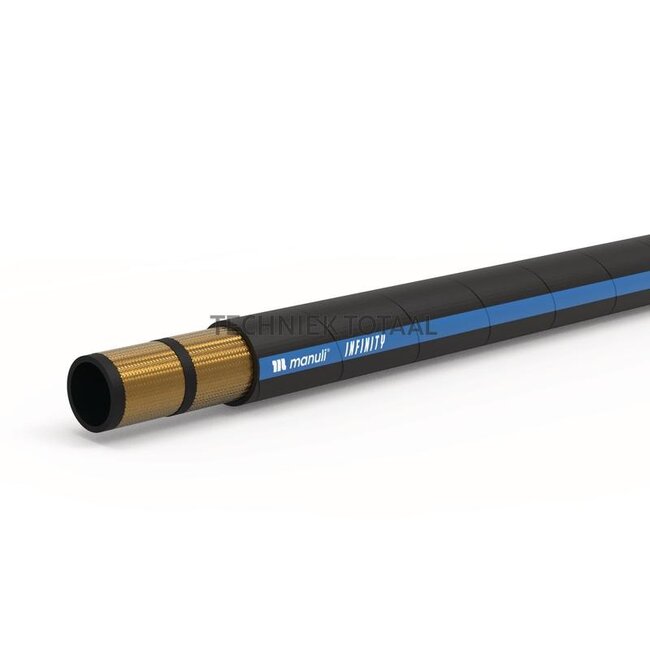

Manuli Hydraulic hose 2SC Infinity DN 12 (1/2"), 360 bar

MANULI hydraulic hose

Replaces: H01164012MBC9

Technical data:

• Nominal width: DN 12 - 1/2"
• Press fitting (skive): 815M00120-08
• Burst pressure (bar): 1440
• Version: 2 steel wire braids
• Type testing: MSHA; CU-TR; FRAS; B
• Comparison no.: H01164012MBC9
• Operating pressure max. (bar): 360
• Hose type: INFINITY
• Weight (g/m): 560
• Press fitting (non-skive): 815M03450-08
• Description: 2 SC, EN857
• Outer Ø (mm): 20.4
• Bending radius (mm): 80
