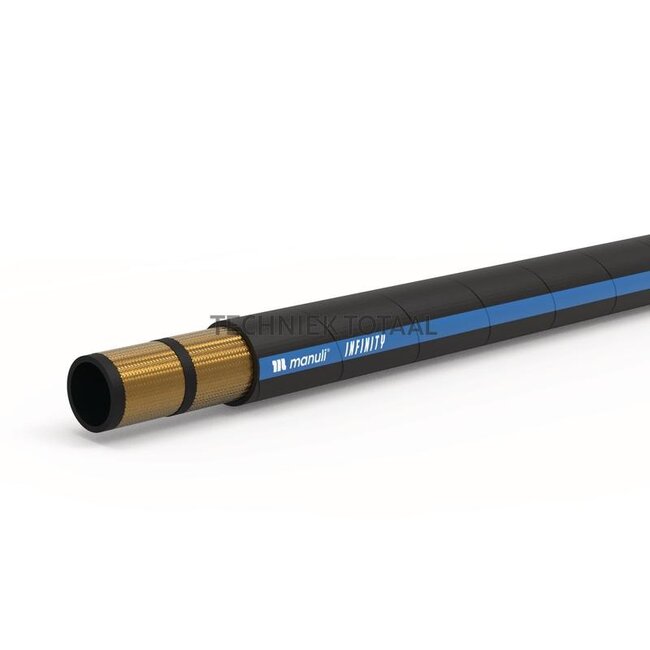

Manuli Hydraulic hose 2SC Infinity DN 16 (5/8"), 320 bar

MANULI hydraulic hose

Replaces: H01164016MBC9

Technical data:

• Press fitting (skive): 815M00120-10
• Bending radius (mm): 90
• Outer Ø (mm): 24.7
• Version: 2 steel wire braids
• Burst pressure (bar): 1280
• Type testing: MSHA; CU-TR; FRAS; B
• Operating pressure max. (bar): 320
• Weight (g/m): 730
• Press fitting (non-skive): 815M03400-10
• Description: 2 SC, EN857
• Nominal width: DN 16 - 5/8"
• Hose type: INFINITY
• Comparison no.: H01164016MBC9
