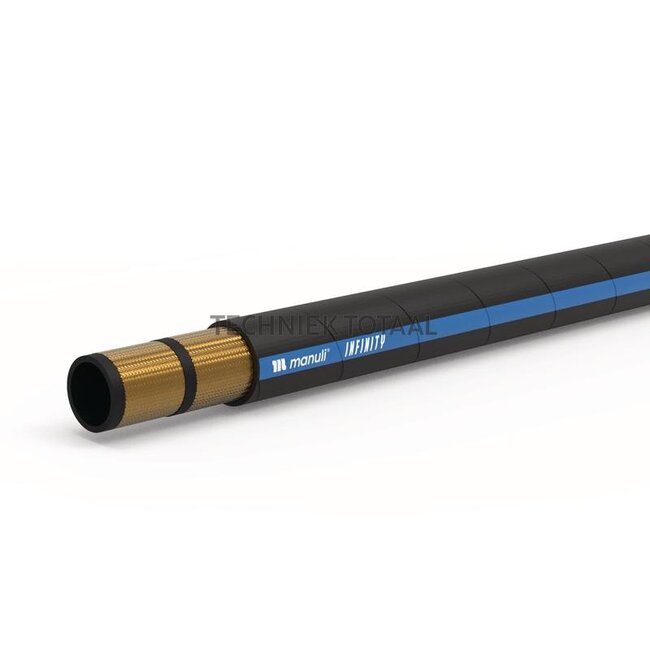

Manuli Hydraulic hose 2SC Infinity DN 20 (3/4"), 320 bar

MANULI hydraulic hose

Replaces: H01164019MBC9

Technical data:

• Outer Ø (mm): 29.3
• Type testing: MSHA; CU-TR; FRAS; B
• Press fitting (skive): 815M00120-12
• Press fitting (non-skive): 815M03400-12
• Burst pressure (bar): 1280
• Bending radius (mm): 120
• Nominal width: DN 20 - 3/4"
• Comparison no.: H01164019MBC9
• Weight (g/m): 1070
• Operating pressure max. (bar): 320
• Description: 2 SC, EN857
• Version: 2 steel wire braids
• Hose type: INFINITY
