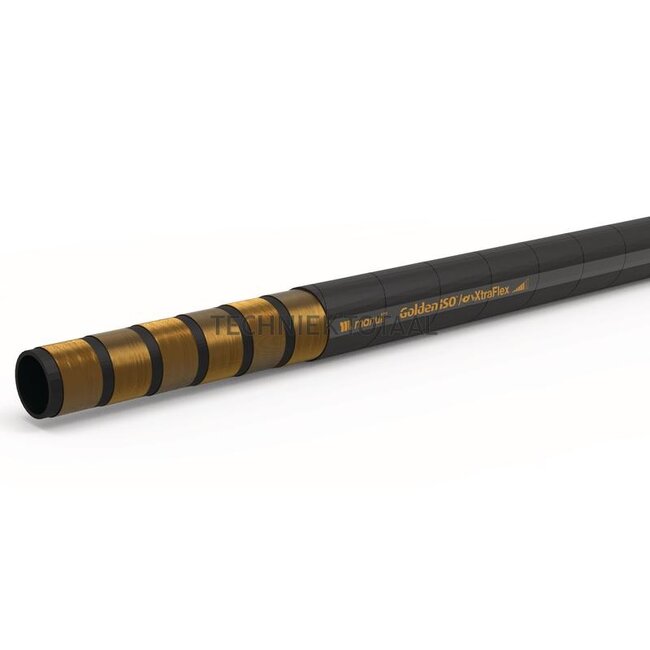

Manuli Hydraulic hose R13 Goldeniso/35 Xtraflex DN 12 (1/2"), 350 bar

MANULI hydraulic hose

Replaces: H10096012MBC9

Technical data:

• Burst pressure (bar): 1400
• Operating pressure max. (bar): 350
• Weight (g/m): 660
• Press fitting (skive): 815M00910-08
• Description: R13
• Hose type: GOLDENISO
• Comparison no.: H10096012MBC9
• Version: 4 steel wire spiral inserts
• Type testing: DNV-GL; CU-TR; MSHA; FRAS; B; ABS; BV; LR; RINA;DNV-GL(MED); MA
• Press fitting (non-skive): 11364664
• Nominal width: DN 12 - 1/2"
• Bending radius (mm): 90
• Outer Ø (mm): 21.8
