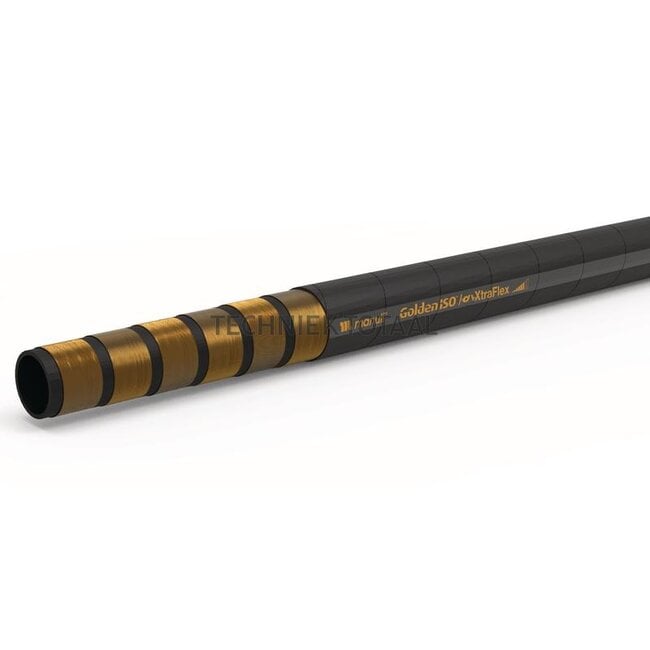

Manuli Hydraulic hose R13 Goldeniso/35 Xtraflex DN 25 (1"), 350 bar

MANULI hydraulic hose

Replaces: H10096025MRC9

Technical data:

• Hose type: GOLDENISO
• Outer Ø (mm): 37
• Version: 4 steel wire spiral inserts
• Operating pressure max. (bar): 350
• Weight (g/m): 1800
• Press fitting (skive): 815M01500-16
• Comparison no.: H10096025MRC9
• Nominal width: DN 25 - 1"
• Bending radius (mm): 150
• Burst pressure (bar): 1400
• Type testing: DNV-GL; CU-TR; MSHA; FRAS; B; ABS; BV; LR; RINA;DNV-GL(MED); MA
• Description: R13
