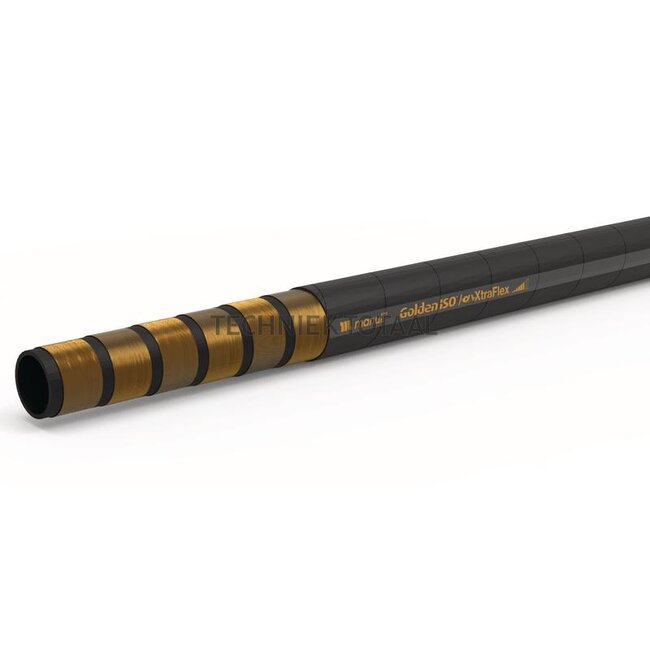

Manuli Hydraulic hose R13 Goldeniso/35 Xtraflex DN 32 (1 1/4"), 350 bar

MANULI hydraulic hose

Replaces: H10096031MRC9

Technical data:

• Weight (g/m): 2340
• Type testing: DNV-GL; CU-TR; MSHA; FRAS; B; ABS; BV; LR; RINA;DNV-GL(MED); MA
• Description: R13
• Comparison no.: H10096031MRC9
• Burst pressure (bar): 1400
• Operating pressure max. (bar): 350
• Nominal width: DN 32 - 1 1/4"
• Bending radius (mm): 230
• Version: 4 steel wire spiral inserts
• Press fitting (skive): 815M01500-20
• Outer Ø (mm): 44.9
• Hose type: GOLDENISO
