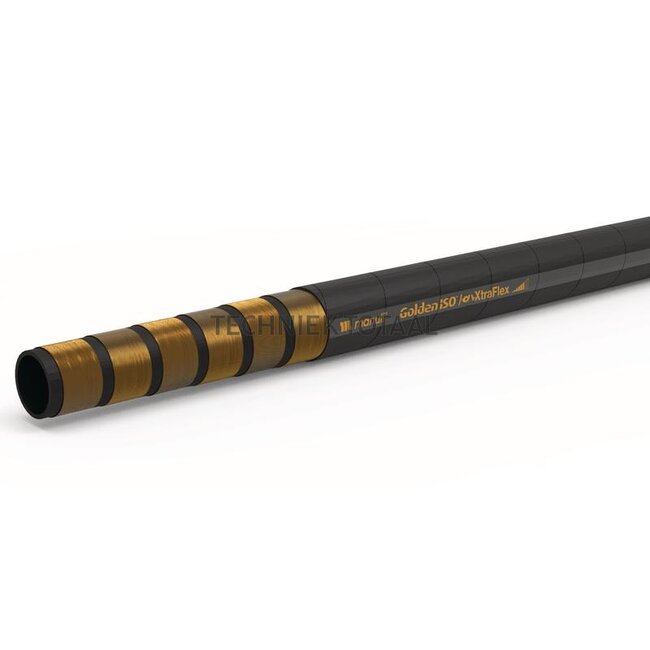

Manuli Hydraulic hose R13 Goldeniso/35 Xtraflex DN 38 (1 1/2"), 350 bar

MANULI hydraulic hose

Replaces: H10096038MRC9

Technical data:

• Weight (g/m): 4165
• Comparison no.: H10096038MRC9
• Outer Ø (mm): 56.1
• Nominal width: DN 38 - 1 1/2"
• Hose type: GOLDENISO
• Press fitting (skive): 815M01600-24
• Burst pressure (bar): 1400
• Version: 6 steel wire spiral inserts
• Type testing: DNV-GL; CU-TR; MSHA; FRAS; B; ABS; BV; LR; RINA;DNV-GL(MED); MA
• Operating pressure max. (bar): 350
• Bending radius (mm): 300
• Description: R13
