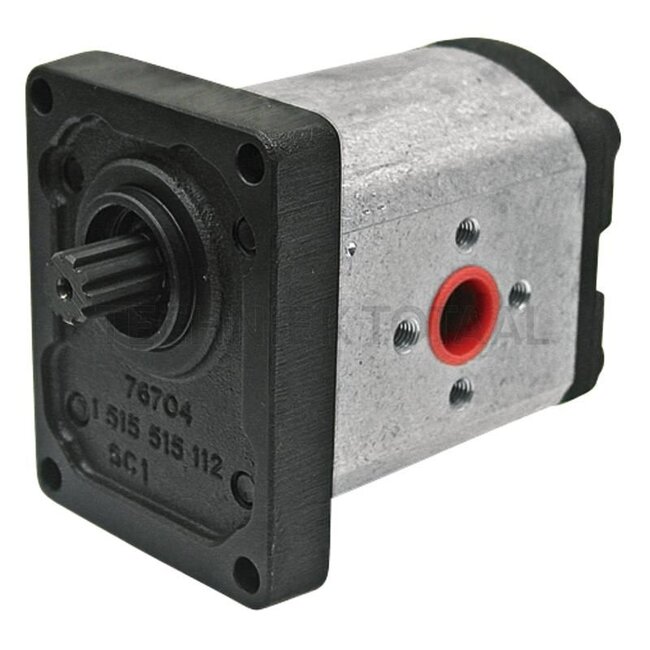

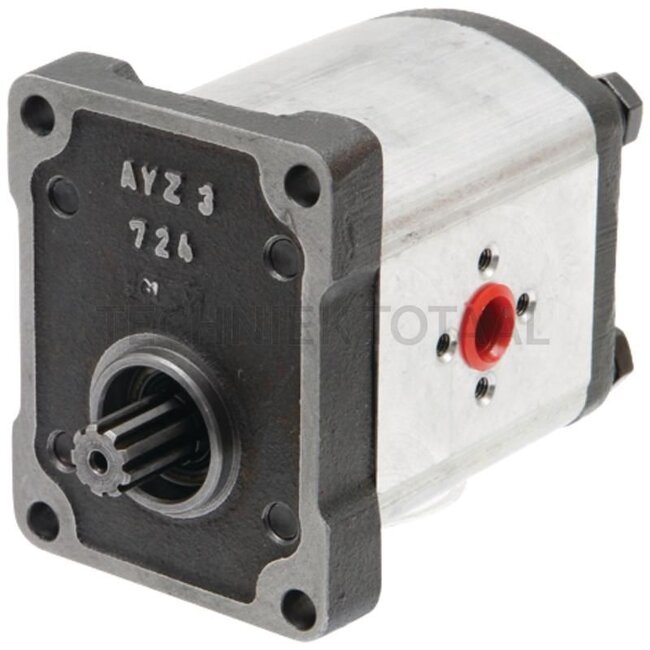

Bosch/Rexroth Hydraulic pump anticlockwise 22,5 cm³, spline-as B 17 x 14, 9 splines | 2.4539.330.0, 2.4539.320.0/10
€695,71
€633,35 Incl. 21% VAT
€523,43 Excl. VAT
Delivery time on request
Output volume: 22,5 cc/rev. Drive shaft: Splined shaft 17 x 14 9 splines. Operating pressure max.: 220 bar. Direction of rotation: Anticlockwise. Min. speed: 500 1/min.. Max. speed: 3500 1/min.. Line connection suction side: Ø 40 mm, 4-hole, M6. Line conn Read more.
Or do you need any help ordering? Feel free to get in touch with our support department at [email protected]. We're happy to help!
Product description
Hydraulic pump Anticlockwise
Output volume (cc/rev): 22,5
Drive shaft: Splined shaft 17 x 14 9 splines
Operating pressure max. (bar): 220
Direction of rotation: Anticlockwise
Min. speed (1/min.): 500
Max. speed (1/min.): 3500
Line connection suction side: Ø 40 mm, 4-hole, M6
Line connection pressure side: Ø 30 mm, 4-hole, M6
Bosch no.: 0510725348
Capacity Q (cc/rev): 22,5
Adaptor plate hole pattern (mm): 71,5 x 96,2
Fitting Ø (mm): 36,5
Seal material: FKM
Passend voor:
Lamborghini: Serie 900, 956, Serie 1000, 1106, 1256, 1306 Turbo, 1356, 1506 Turbo, 1556, 1706 Turbo, Serie R 1000, R 1256, R 1306, R 1506, Serie R6, R6.170
Hürlimann: Serie H 496 → H 5116, H-496, H-5116, Serie H 6136 → H 6170, H-6136, H-6170
Same: 2.4539.330.0, Serie Corsaro, Corsaro 70, Serie Galaxi, Galaxi 170, Serie Hercules, Hercules 160, Serie Jaguar, Jaguar 95, Serie Laser, Laser 85, Laser 90, Laser 100, Laser 110, Laser 125, Laser 130, Laser 150, Serie Leopard, Leopard 85, Leopard 90, Serie Saturno, Saturno 80, Serie Tiger, Tiger SIX 105
