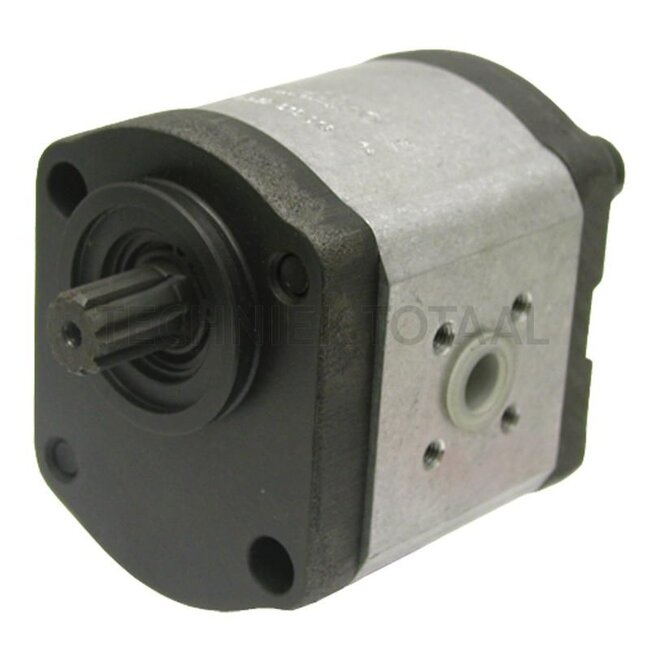

Bosch/Rexroth Hydraulic pump clockwise 16 cm³/rpm., spline-as B 17 x 14, 9 splines
€860,33
€817,30 Incl. 21% VAT
€675,45 Excl. VAT
In stock
Output volume: 16 cc/rev. Drive shaft: Splined shaft 17 x 14 9 splines. Operating pressure max.: 250 bar. Direction of rotation: Right. Min. speed: 500 1/min.. Max. speed: 3000 1/min.. Line connection suction side: Ø 40 mm, 4-hole, M6. Line connection pre Read more.
Or do you need any help ordering? Feel free to get in touch with our support department at [email protected]. We're happy to help!
Product description
Hydraulic pump Clockwise
Output volume (cc/rev): 16
Drive shaft: Splined shaft 17 x 14 9 splines
Operating pressure max. (bar): 250
Direction of rotation: Right
Min. speed (1/min.): 500
Max. speed (1/min.): 3000
Line connection suction side: Ø 40 mm, 4-hole, M6
Line connection pressure side: Ø 35 mm, 4-hole, M6
Bosch no.: 0510615023
Capacity Q (cc/rev): 16
Adaptor plate hole pattern (mm): 60 x 60 (2 x)
Fitting Ø (mm): 50
Seal material: FKM
Passend voor:
Hürlimann: 2.4539.560.0, 2.4529.740.0, Serie H 356 → H 488, H-468, H-476, H-478, H-486 T, H-488, H-488 T, Serie H Elite, Elite H-4105
Lamborghini: Serie 700, 774, 774-80, Serie Formula, Formula 105, Formula 115, Formula 135, Serie Premium, Premium 850, Premium 950, Premium 1050, Premium 1060, Serie R 800, R 874 T, R 874-90T
