Walterscheid Hydraulic top link hook cat. 3, 562 - 747 mm, stroke 185 mm | 1206176
€2.418,79
€1.965,25 Incl. 21% VAT
€1.624,17 Excl. VAT
Delivery time on request

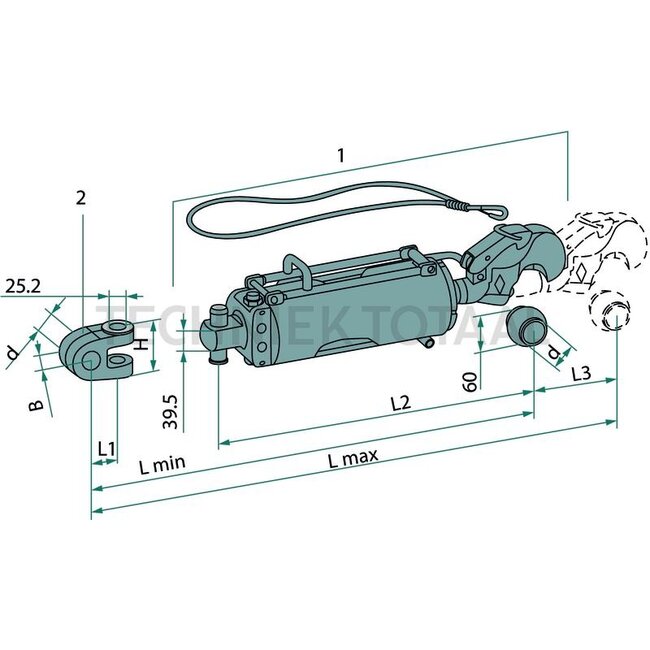

Top link type: hydraulic. Type: Tail hook/clevis joint. A cat.: 3 / 32. B cat.: 3 / 32. F: 562 / 747 mm. Stroke: 185 mm. Cylinder Ø inner E: 90 mm. L2: 562 mm. Description: Tensile force in t at 200 bar. Included in delivery: 1 x hydraulic top link D-90 C Read more.
Or do you need any help ordering? Feel free to get in touch with our support department at [email protected]. We're happy to help!
Product description
Hydraulic top link
Top link type: hydraulic
Type: Tail hook/clevis joint
A cat.: 3 / 32
B cat.: 3 / 32
F (mm): 562 / 747
Stroke (mm): 185
Cylinder Ø inner E (mm): 90
L2 (mm): 562
Description: Tensile force in t at 200 bar

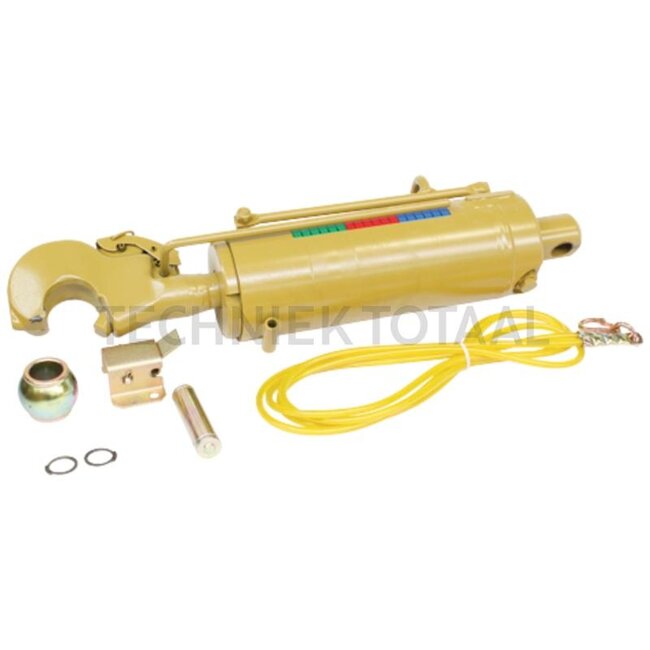

Included in delivery: 1 x hydraulic top link D-90 Cat.3S 1 x bolt KPL107 (part number: 395206750) 1 x bracket Cat.2/3 (part number: 395308347) 1 x operating cable (part number: 395307612) 1 x ball sleeve Cat.3 (part number: 395099043) 1 x marking sticker (part number: 395309530) (Already attached to the cylinder) PLEASE NOTE: hose set (part number: 3951207333) and clevis head are not included and may have to be purchased separately.
Tensile force (t): 10,2
Max. power (kW (hp)): 147 (200)
Assembly notes: The Cat. 3S hydraulic top link is only suitable for tractors with up to max. 147 kW (200 PS) engine power.
