Walterscheid Hydraulic top link cat. 3/3, 700 - 950 mm, stroke 250 mm, Ø 105 mm | 1207241
€2.665,63
€2.165,80 Incl. 21% VAT
€1.789,92 Excl. VAT
Delivery time on request

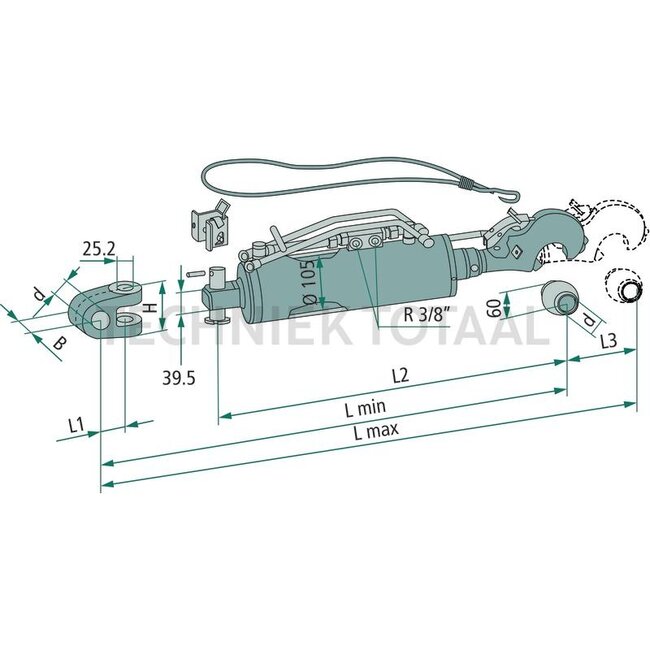

A cat.: 3 / 32. B cat.: 3 / 32. F: 700 / 950 mm. Cylinder Ø inner E: 105 mm. Check valve: Top. Tensile force: 11,7 t. Stroke: 250 mm. L2: 637 mm. Max. power (kW (hp)): 147 (200). Description: Tensile force in t at 200 bar. Included in delivery: 1 x hydrau Read more.
Or do you need any help ordering? Feel free to get in touch with our support department at [email protected]. We're happy to help!
Product description
Hydraulic top link
A cat.: 3 / 32
B cat.: 3 / 32
F (mm): 700 / 950
Cylinder Ø inner E (mm): 105
Check valve: Top
Tensile force (t): 11,7
Stroke (mm): 250
L2 (mm): 637
Max. power (kW (hp)): 147 (200)
Description: Tensile force in t at 200 bar

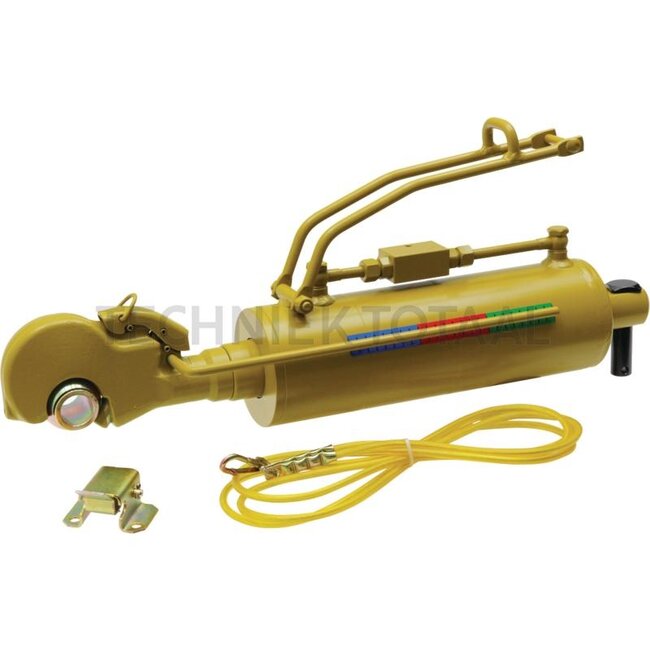

Included in delivery: 1 x hydraulic top link with integrated damping C-105DS Cat.3 1 x operating cable (part number: 395307612) 1 x ball sleeve Cat.3 (part number: 395099043) 1 x bracket Cat.2/3 (part number: 395308347) 1 x bolt KPL107 (part number: 395206750) 1 x marking sticker (part number: 395305934) (Already attached to the cylinder) PLEASE NOTE: hose set and clevis head are not included and must be ordered separately if required.
Type: Tail hook/clevis joint
Assembly notes: The Cat. 3 hydraulic top link with integrated damping is only suitable for tractors with up to max. 147 kW (200 PS) engine power.
