Name: Walterscheid Hydraulic top link cat. 3/3, 537 - 722 mm, stroke 185 mm, Ø 70 mm | 1309536
Brand: Walterscheid
SKU: 395309536
Price: 1012.85 EUR

Walterscheid Hydraulic top link cat. 3/3, 537 - 722 mm, stroke 185 mm, Ø 70 mm | 1309536

€1.120,59

€1.012,85 Incl. 21% VAT

€837,06 Excl. VAT

In stock

A cat.: 3 / 32. B cat.: 3 / 32. F: 537 / 722 mm. Cylinder Ø inner E: 70 mm. Check valve: Top. Tensile force: 5,6 t. Stroke: 185 mm. L2: 537 mm. Max. power (kW (hp)): 110 (150). Description: <b>Product advantages:</b> All components can be replaced separat Read more.

Found in category:

Tractor & vehicle› Three-point linkage parts› Top links› Hydraulic top links

Worldwide shipping*
Customer rating 9,3/10
30-day return policy
98,000+ technical products

Larger quantity required?

Any questions about this product?

Or do you need any help ordering? Feel free to get in touch with our support department at [email protected]. We're happy to help!

Hydraulic top link

A cat.: 3 / 32

B cat.: 3 / 32

F (mm): 537 / 722

Cylinder Ø inner E (mm): 70

Check valve: Top

Tensile force (t): 5,6

Stroke (mm): 185

L2 (mm): 537

Max. power (kW (hp)): 110 (150)

Description: Product advantages:
All components can be replaced separately
Large range of replacement parts
Versatile as different clevises can be attached
Long service life
Valve block protected with a special reinforced bracket

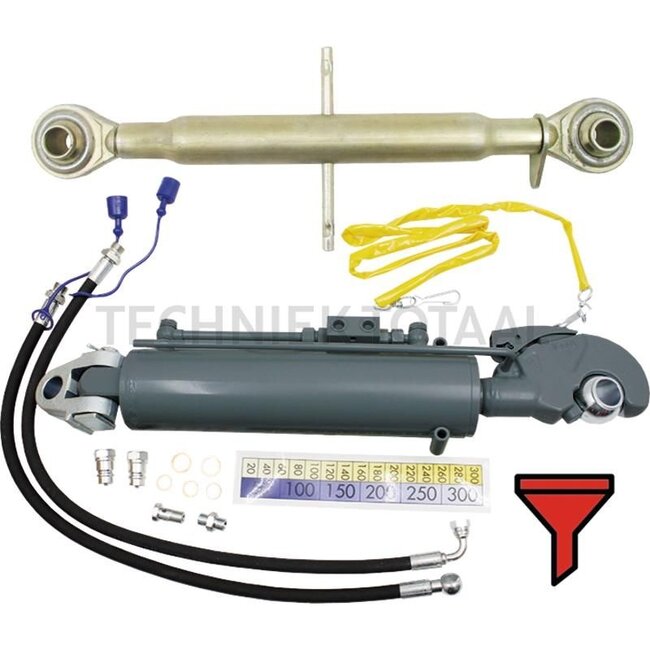

Included in delivery: 1 x hydraulic top link C-70 Cat.3
1 x bolt KPL107 (part number: 395206750)
1 x bracket Cat.2/3 (part number: 395308347)
1 x operating cable (part number: 395305453)
1 x ball sleeve Cat.3/2 (part number: 395099044)
1 x marking sticker (part number: 395309530) (Already attached to the cylinder)
PLEASE NOTE:
hose set (part number: 3951207333) and clevis head not included.

Type: Tail hook/clevis joint

Assembly notes: The Walterscheid Cat. 3 hydraulic top link is only suitable for tractors with up to max. 110 kW (150 PS) engine power.
