Product description

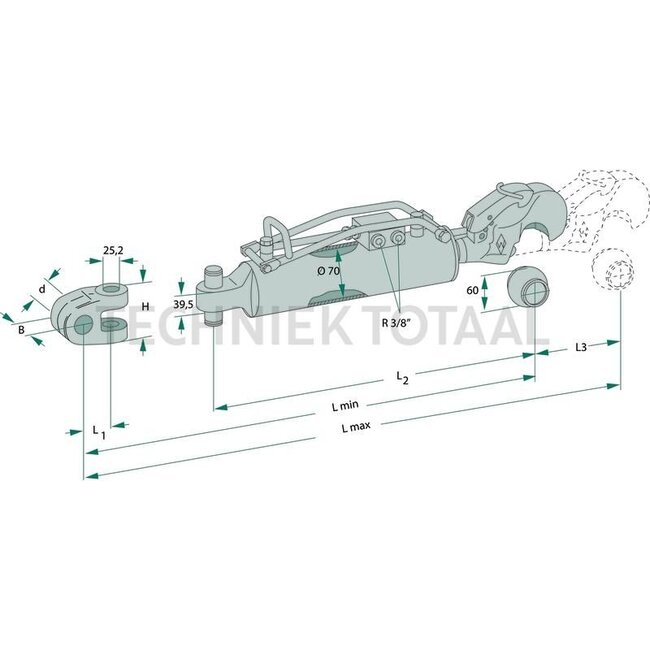

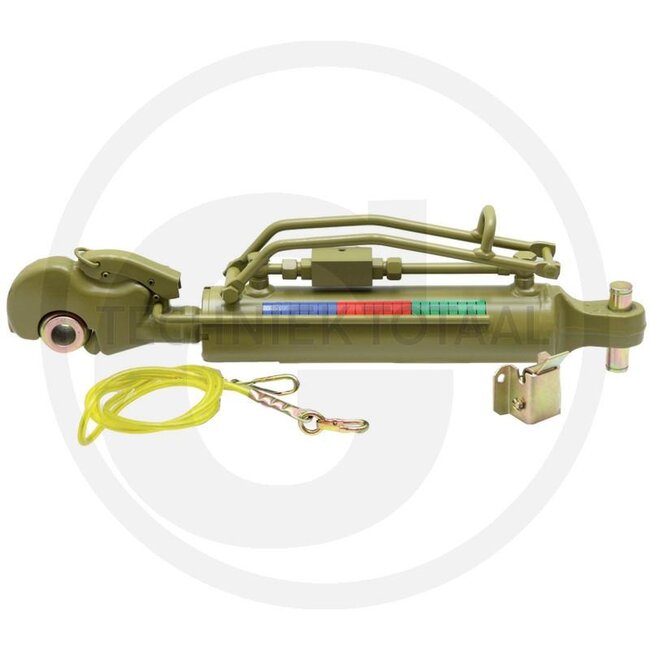

Hydraulic top link
A cat.: 3 / 32
B cat.: 2 / 25,4
F (mm): 602 / 852
Cylinder Ø inner E (mm): 70
Check valve: Top
Tensile force (t): 5,6
Stroke (mm): 250
L2 (mm): 602
Max. power (kW (hp)): 110 (150)
Description: Product advantages: All components can be replaced separately Large range of replacement parts Versatile as different clevises can be attached Long service life Valve block protected with a special reinforced bracket

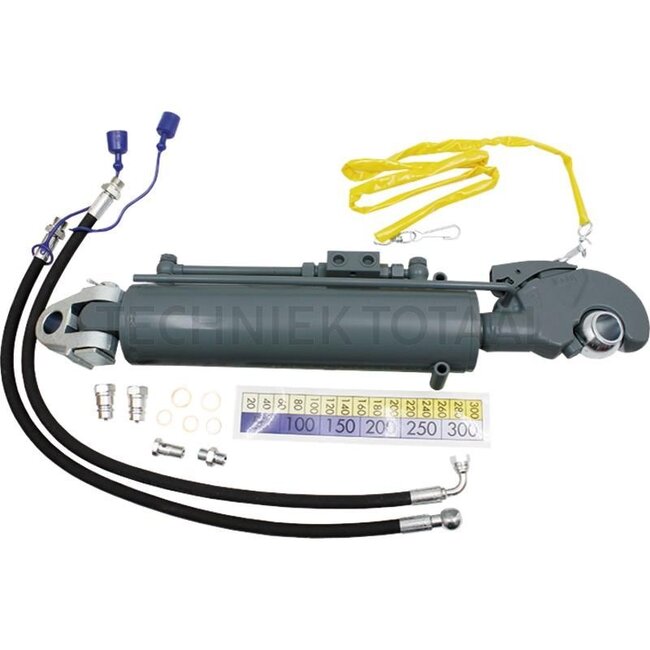

Included in delivery: 1 x hydraulic top link C-70 Cat.3 1 x bolt KPL107 (part number: 395206750) 1 x bracket Cat.2/3 (part number: 395308347) 1 x operating cable (part number: 395305453) 1 x ball sleeve Cat.3/2 (part number: 395099044) 1 x marking sticker (part number: 395305934) (Already attached to the cylinder) PLEASE NOTE: hose set (part number: 3951207333) and clevis head not included.
Type: Tail hook/clevis joint
Assembly notes: The Walterscheid Cat. 3 hydraulic top link is only suitable for tractors with up to max. 110 kW (150 PS) engine power.
