Walterscheid Hydraulic top link - 395204404, 1204404 | A cat.: 3 / 32 | B cat.: 3 / 32 | F: 704 / 954 mm | Cylinder Ø inner E: 90 mm | Check valve: Top | Tensile force: 4,2 t | Stroke: 250 mm | L2: 637 mm | Max. power (kW (hp)): 184 (200) | Description: <b>Advantages:
€1.829,04
€1.506,81Incl. VAT
In stock
€1.245,30
Excl. VAT
A cat.: 3 / 32. B cat.: 3 / 32. F: 704 / 954 mm. Cylinder Ø inner E: 90 mm. Check valve: Top. Tensile force: 4,2 t. Stroke: 250 mm. L2: 637 mm. Max. power (kW (hp)): 184 (200). Description: <b>Advantages:</b> All components can be replaced separately Larg
Read more.
40.000+ technical products
Worldwide shipping*
30-day return policy
Rating 9.0/10 (491 reviews)
Larger quantity required?
Product description
Hydraulic top link

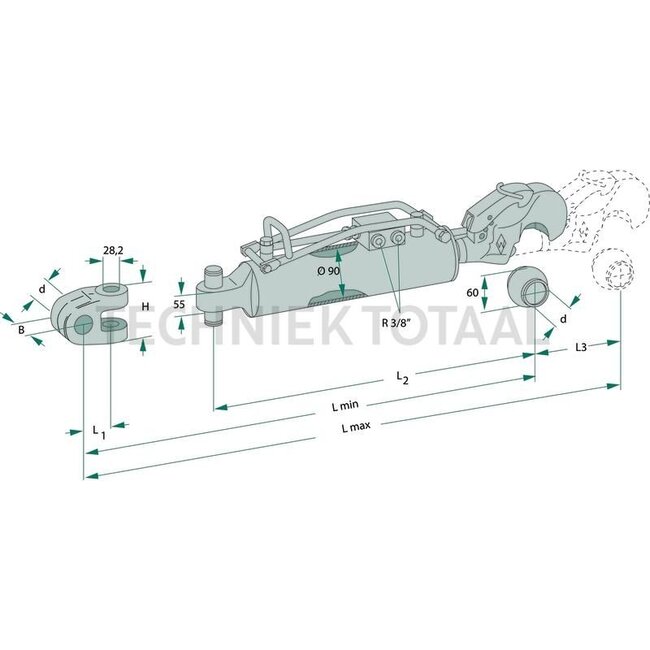

A cat.: 3 / 32
B cat.: 3 / 32
F (mm): 704 / 954
Cylinder Ø inner E (mm): 90
Check valve: Top
Tensile force (t): 4,2
Stroke (mm): 250
L2 (mm): 637
Max. power (kW (hp)): 184 (200)
Description: Advantages: All components can be replaced separately Large range of replacement parts Versatile as different clevises can be attached Long service life Valve block protected with a special reinforced bracket

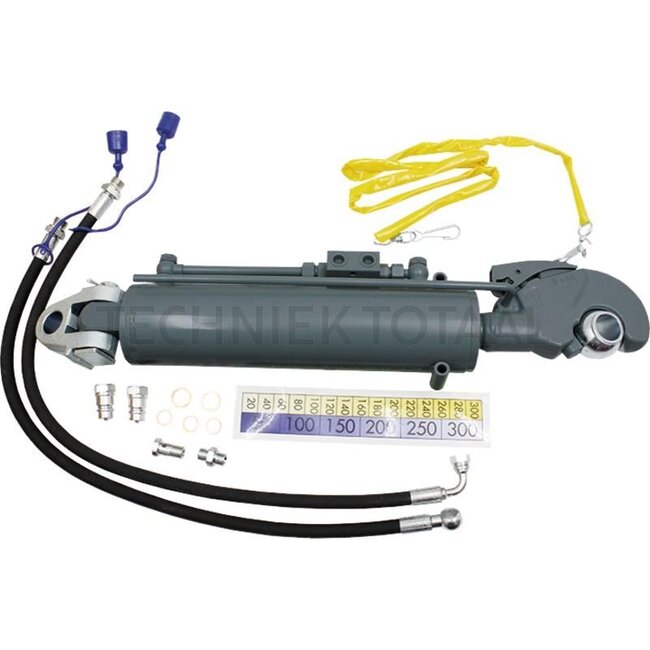

Included in delivery: 1x hydraulic top link C-90 Cat. 3 1x bolt KPL134.3 (part number: 395205750) 1x bracket Cat. 2/3 (part number: 395308347) 1x operating cable (part number: 395307612) 1x ball sleeve Cat. 3 (part number: 395099043) 1x marking sticker (part number: 395305934) (Already attached to the cylinder) PLEASE NOTE: Hose set (part number: 3951207333) and clevis head not included.
Type: Tail hook/clevis joint
Assembly notes: The Walterscheid Cat. 3 hydraulic top link is only suitable for tractors with up to max. 184 kW (250 PS) engine power.
