Name: Walterscheid Hydraulic top link check valve top cat. 3, 562 - 747 mm, Ø 90 mm | 1204484
Brand: Walterscheid
SKU: 395204484
Price: 1461.41 EUR

Walterscheid Hydraulic top link check valve top cat. 3, 562 - 747 mm, Ø 90 mm | 1204484

€1.734,86

€1.461,41 Incl. 21% VAT

€1.207,78 Excl. VAT

In stock

A cat.: 3 / 32. B cat.: 3 / 32. F: 562 / 747 mm. Cylinder Ø inner E: 90 mm. Check valve: Top. Tensile force: 10,2 t. Stroke: 185 mm. L2: 562 mm. Max. power (kW (hp)): 184 (250). Description: <b>Advantages:</b> All components can be replaced separately Lar Read more.

Found in category:

Tractor & vehicle› Three-point linkage parts› Top links› Hydraulic top links

Worldwide shipping*
Customer rating 9,3/10
30-day return policy
98,000+ technical products

Larger quantity required?

Any questions about this product?

Or do you need any help ordering? Feel free to get in touch with our support department at [email protected]. We're happy to help!

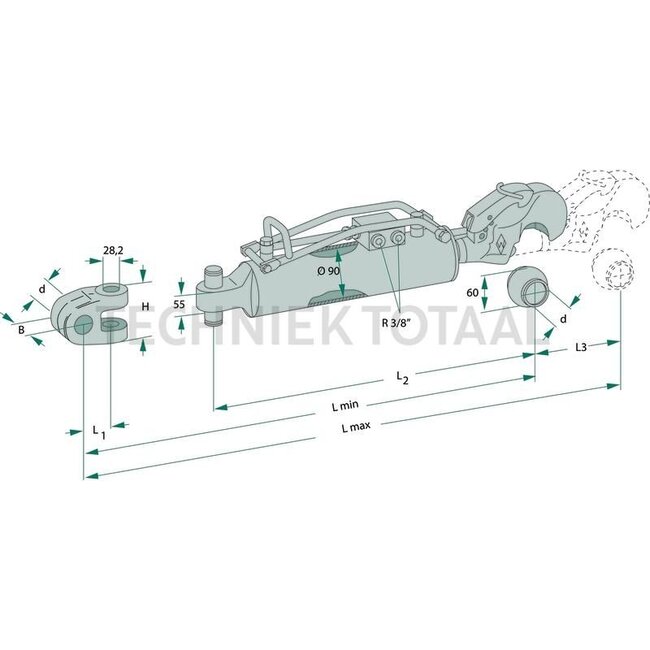

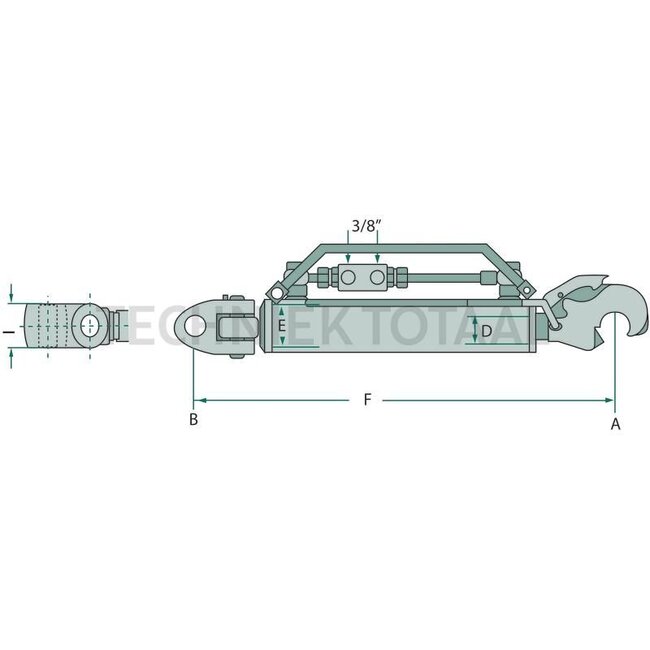

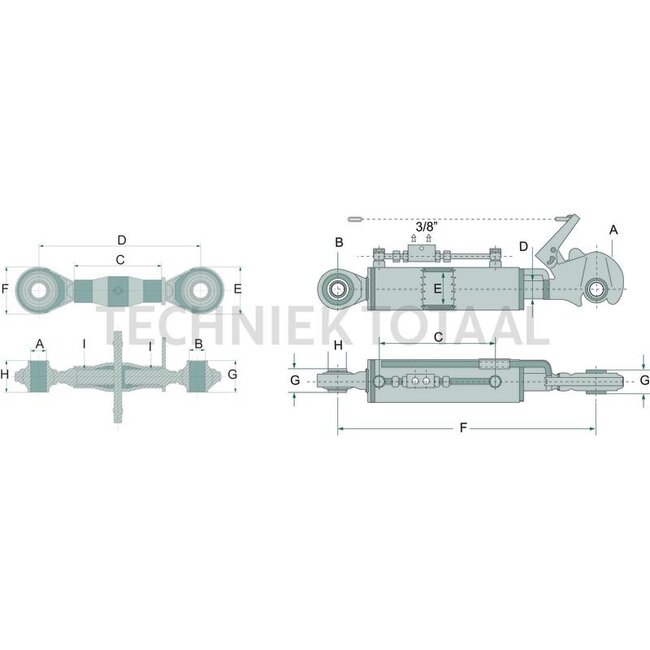

Hydraulic top link

A cat.: 3 / 32

B cat.: 3 / 32

F (mm): 562 / 747

Cylinder Ø inner E (mm): 90

Check valve: Top

Tensile force (t): 10,2

Stroke (mm): 185

L2 (mm): 562

Max. power (kW (hp)): 184 (250)

Description: Advantages:
All components can be replaced separately
Large range of replacement parts
Versatile as different clevises can be attached
Long service life
Valve block protected with a special reinforced bracket

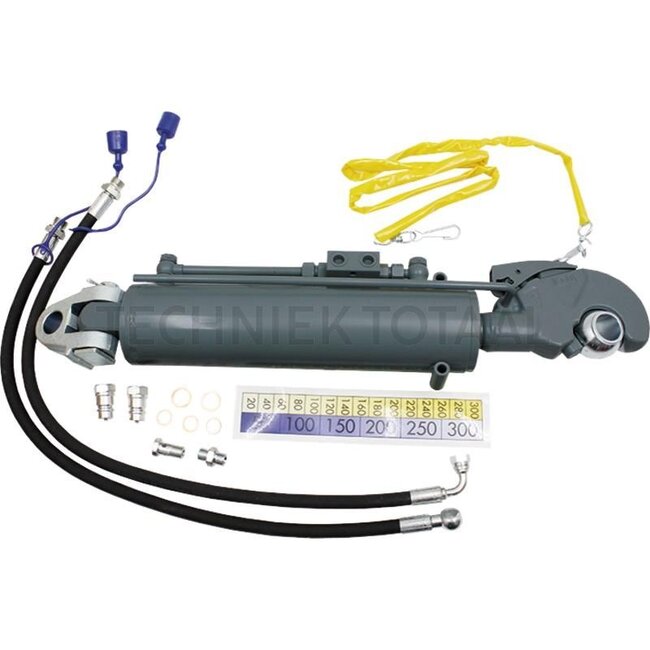

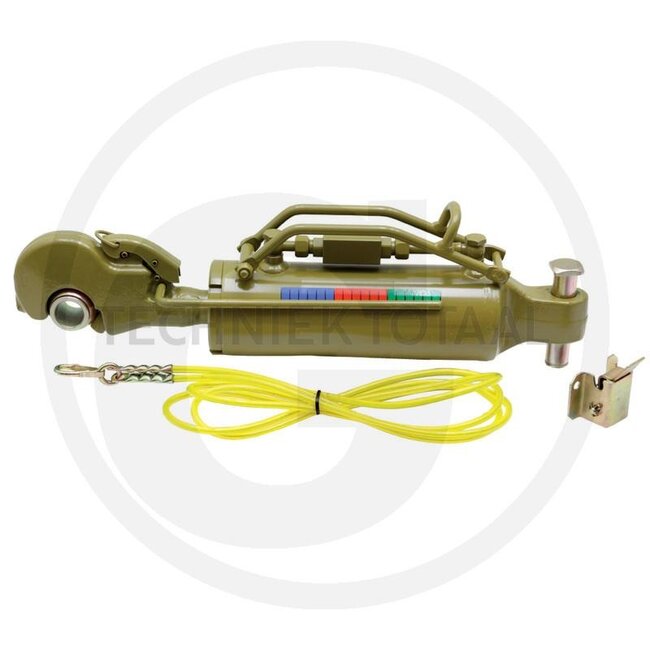

Included in delivery: 1x hydraulic top link C-90 Cat. 3
1x bolt KPL134.3 (part number: 395205750)
1x bracket Cat. 2/3 (part number: 395308347)
1x operating cable (part number: 395307612)
1x ball sleeve Cat. 3 (part number: 395099043)
1x marking sticker (part number: 395309530) (Already attached to the cylinder)
PLEASE NOTE:
Hose set (part number: 3951207333) and clevis head not included.

Type: Tail hook/clevis joint

Assembly notes: The Walterscheid Cat. 3 hydraulic top link is only suitable for tractors with up to max. 184 kW (250 PS) engine power.
