Walterscheid Hydraulic top link - 395309539, 1309539 | A cat.: 3 / 32 | B cat.: 3 / 32 | F: 637 / 887 mm | Cylinder Ø inner E: 90 mm | Check valve: Top | Tensile force: 10,2 t | Stroke: 250 mm | L2: 637 mm | Max. power (kW (hp)): 147 (200) | Description: <b>Advantages
€1.912,50
€1.575,58Incl. VAT
In stock
€1.302,13
Excl. VAT
A cat.: 3 / 32. B cat.: 3 / 32. F: 637 / 887 mm. Cylinder Ø inner E: 90 mm. Check valve: Top. Tensile force: 10,2 t. Stroke: 250 mm. L2: 637 mm. Max. power (kW (hp)): 147 (200). Description: <b>Advantages:</b> All components can be replaced separately Lar
Read more.
50.000+ technical products
Worldwide shipping*
30-day return policy
Rating 4.7/5 (420 reviews)
Product description

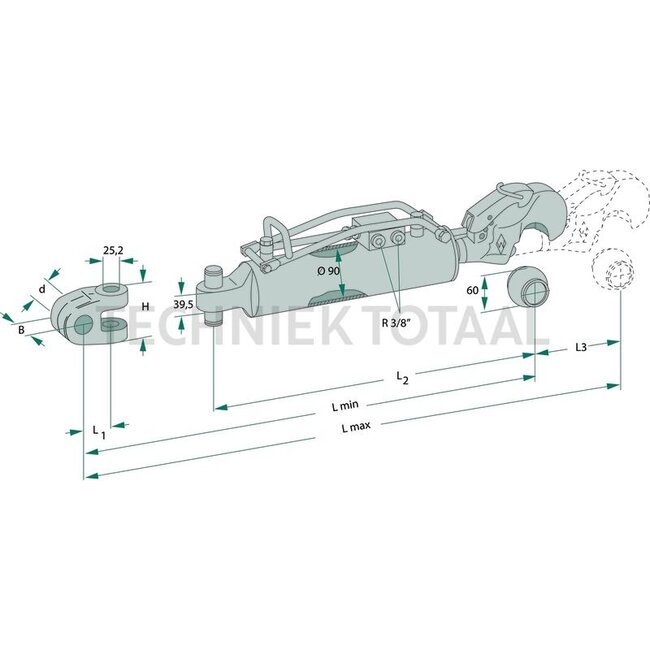

Hydraulic top link
A cat.: 3 / 32
B cat.: 3 / 32
F (mm): 637 / 887
Cylinder Ø inner E (mm): 90
Check valve: Top
Tensile force (t): 10,2
Stroke (mm): 250
L2 (mm): 637
Max. power (kW (hp)): 147 (200)
Description: Advantages: All components can be replaced separately Large range of replacement parts Versatile as different clevises can be attached Long service life Valve block protected with a special reinforced bracket
Included in delivery: 1x hydraulic top link C-90 Cat. 3 1x bolt KPL107 (part number: 395206750) 1x bracket Cat. 2/3 (part number: 395308347) 1x operating cable (part number: 395307612) 1x ball sleeve Cat. 3 (part number: 395099043) 1x marking sticker (part number: 395305934) (Already attached to the cylinder) PLEASE NOTE: Hose set (part number: 3951207333) and clevis head not included.
Type: Tail hook/clevis joint
Assembly notes: The Walterscheid Cat. 3 hydraulic top link is only suitable for tractors with up to max. 147 kW (200 PS) engine power.
