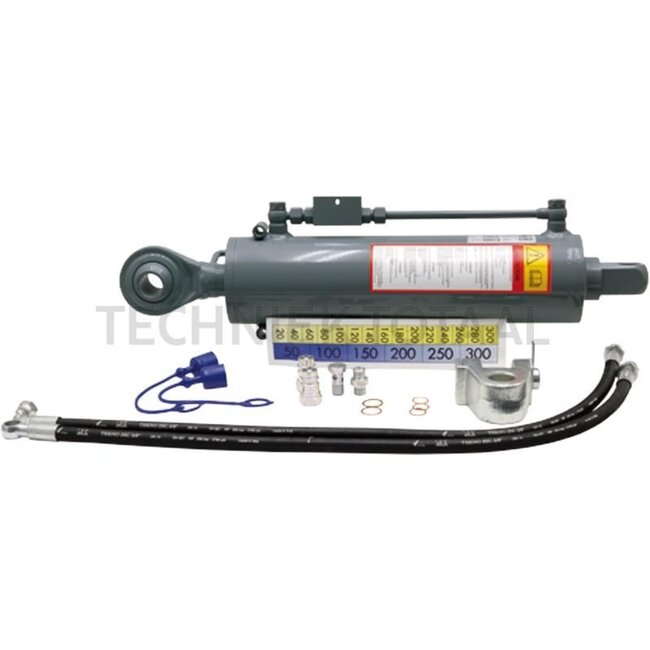

Hydraulic top link cat. 3, 700 - 1028 mm, stroke 328 mm, Ø 105 mm
9,4688 reviews
(0)
-8%
Hydraulic top link cat. 3, 700 - 1028 mm, stroke 328 mm, Ø 105 mm
-8%
Hydraulic top link cat. 3, 700 - 1028 mm, stroke 328 mm, Ø 105 mm
-8%
Hydraulic top link cat. 3, 700 - 1028 mm, stroke 328 mm, Ø 105 mm
-8%
Hydraulic top link cat. 3, 700 - 1028 mm, stroke 328 mm, Ø 105 mm
Hydraulic top link cat. 3, 700 - 1028 mm, stroke 328 mm, Ø 105 mm
Hydraulic top link cat. 3, 700 - 1028 mm, stroke 328 mm, Ø 105 mm
Hydraulic top link cat. 3, 700 - 1028 mm, stroke 328 mm, Ø 105 mm
Hydraulic top link cat. 3, 700 - 1028 mm, stroke 328 mm, Ø 105 mm

Hydraulic top link cat. 3, 700 - 1028 mm, stroke 328 mm, Ø 105 mm

€1.008,85
€928,14 Incl. 21% VAT
€767,06 Excl. VAT
In stock

A cat.: 3 / 32. B cat.: 3 / 32. F: 700 / 1028 mm. Piston rod Ø D: 45 mm. Cylinder Ø inner E: 105 mm. Lifting force: 14 t. Tensile force: 9 t. Stroke: 328 mm. I: 51 mm. H: 453 mm. G: 553 mm. Type: Clevis joint/ball joint. Top link type: hydraulic. Read more.

  • Worldwide shipping*
  • Customer rating 9,3/10
  • 30-day return policy
  • 98,000+ technical products

Larger quantity required?



Any questions about this product?
Or do you need any help ordering? Feel free to get in touch with our support department at [email protected]. We're happy to help!

Product description

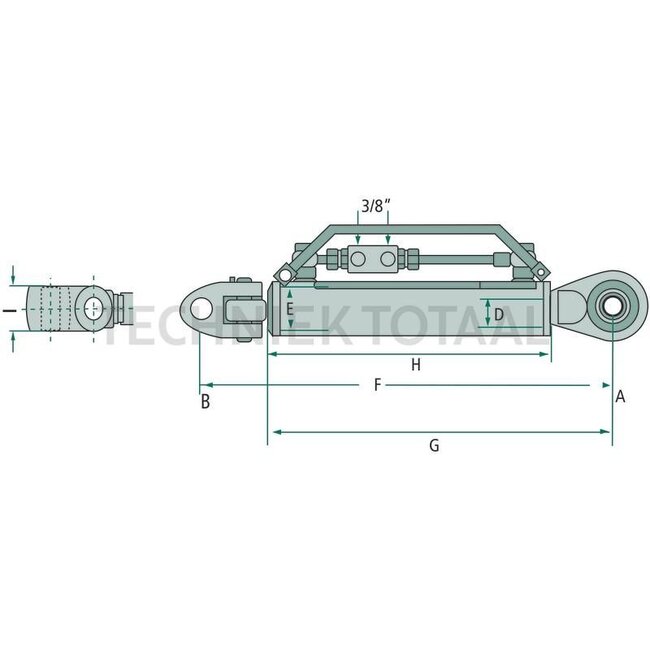

Hydraulic top link for category 3, with a length of 700 to 1028 mm and a stroke of 328 mm. The piston rod has a diameter of 45 mm and the cylinder an inner diameter of 105 mm. The lifting force is 14 t and the tensile force 9 t. The top link has a clevis joint and ball joint as construction. Dimensions: A 3/32, B 3/32, F 700/1028 mm, I 51 mm, H 453 mm and G 553 mm. Fits tractors from Case IH and McCormick.

Suitable for

Case IH9 models

Magnum 7210, Magnum 7210 Pro, Magnum 7220, Magnum 7220 Pro, Magnum 7230, Magnum 7230 Pro, Magnum 7250, Magnum 7250 Pro, Serie Magnum

McCormick3 models

X70.70, X70.80, Serie X70

Specifications Hydraulic top link cat. 3

Article number20000164
EAN4250808768282
Weight31,5 kg
A cat.3 / 32
B cat.3 / 32
F700 / 1028 mm
Piston rod Ø D45 mm
Cylinder Ø inner E105 mm
Lifting force14 t
Tensile force9 t
Stroke328 mm
I51 mm
H453 mm
G553 mm
TypeClevis joint/ball joint
Top link typehydraulic
