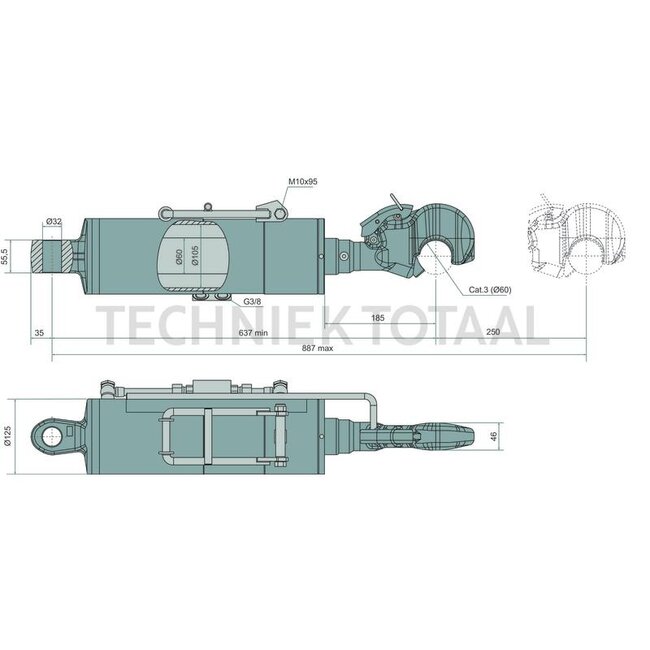

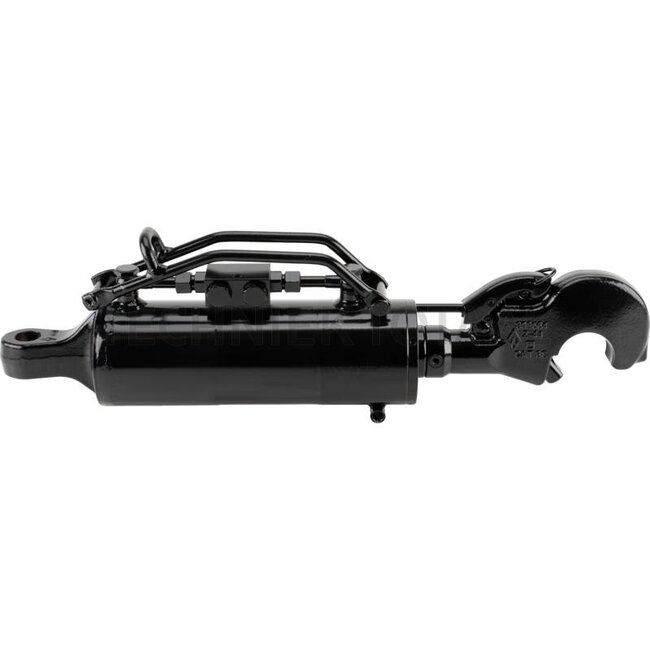

GRANIT Hydraulic top link

Technical data:

• F (mm): 637 / 887
• A cat.: 3 / 60
• Included in delivery: Nitrogen drain screw. <b> The screw must be removed as the nitrogen must be drained before disposing of the cylinder. </b>
• Top link type: hydraulic
• Description: <b> The most important advantages at a glance: </b> Reduced material stress on the tractor and implement Higher comfort when driving and working Longer mechanical component life Higher occupational safety thanks to minimised impact loads Hydraulic top links with damping are used for demanding applications where varying loads occur such as transport, grassland maintenance or arable farming
• Type: Tail hook/clevis joint
• Piston rod Ø D (mm): 60
• Max. power kW (PS): 221 (300)
• Version: With damping
• Cylinder Ø inner E (mm): 105
• Stroke (mm): 250
• B cat.: 3 / 32
• Check valve: 120°
